前言
Kubernetes二进制部署相对于使用自动化工具（如kubeadm）而言，涉及更多的手动步骤和配置过程。然而，这种部署方式在一些情境下具有显著的优势。通过手动下载、配置和启动Kubernetes的各个组件，用户能够获得更高程度的定制性和精细控制权，以便根据特定需求进行调整。这种灵活性使用户能够选择所需的Kubernetes版本、特定的组件配置，以及自定义的网络和存储方案。
同时，通过深入参与每个部署步骤，用户可以更加深入地理解Kubernetes的内部工作机制和组件之间的关系。这种深入了解对于排查问题、优化性能以及实现定制的集群架构至关重要。此外，二进制部署还允许用户在没有网络连接的环境中进行部署，这在某些限制性网络环境下非常有用。对于特殊场景，如需要定制化的认证、授权和网络设置，手动部署能够更好地满足需求。
然而，需要注意的是，Kubernetes的二进制部署需要更多的时间、技术知识和资源投入。相较于自动化工具，它 可能增加了出错的风险，需要更多的监控和维护工作。因此，在选择部署方式时，应该根据自身的技能水平、时间成本和项目需求来选择适合自己的部署方式。
1.基础环境配置
1.1 时间同步
ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
cat /etc/default/locale
LANG=en_US.UTF-8
LC_TIME=en_DK.UTF-8
*/5 * * * * /usr/sbin/ntpdate time1.aliyun.com &> /dev/null && hwclock -w/usr/sbin/ntpdate
1.2 安裝docker
root@master01:/home/ceamg# cd /apps/docker/
root@master01:/apps/docker# tar xvf docker-19.03.15-binary-install.tar.gz
root@master01:/apps/docker# ll
total 153128
drwxr-xr-x 2 root root 4096 Apr 11 2021 ./
drwxr-xr-x 3 root root 4096 Jan 2 03:52 ../
-rw-r--r-- 1 root root 647 Apr 11 2021 containerd.service
-rw-r--r-- 1 root root 78156440 Jan 2 03:57 docker-19.03.15-binary-install.tar.gz
-rw-r--r-- 1 root root 62436240 Feb 5 2021 docker-19.03.15.tgz
-rwxr-xr-x 1 root root 16168192 Jun 24 2019 docker-compose-Linux-x86_64_1.24.1*
-rwxr-xr-x 1 root root 2708 Apr 11 2021 docker-install.sh*
-rw-r--r-- 1 root root 1683 Apr 11 2021 docker.service
-rw-r--r-- 1 root root 197 Apr 11 2021 docker.socket
-rw-r--r-- 1 root root 454 Apr 11 2021 limits.conf
-rw-r--r-- 1 root root 257 Apr 11 2021 sysctl.conf
#!/bin/bash
DIR=`pwd`
PACKAGE_NAME="docker-19.03.15.tgz"
DOCKER_FILE=${DIR}/${PACKAGE_NAME}
centos_install_docker(){
grep "Kernel" /etc/issue &> /dev/null
if [ $? -eq 0 ];then
/bin/echo "当前系统是`cat /etc/redhat-release`,即将开始系统初始化、配置docker-compose与安装docker" && sleep 1
systemctl stop firewalld && systemctl disable firewalld && echo "防火墙已关闭" && sleep 1
systemctl stop NetworkManager && systemctl disable NetworkManager && echo "NetworkManager" && sleep 1
sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/sysconfig/selinux && setenforce 0 && echo "selinux 已关闭" && sleep 1
\cp ${DIR}/limits.conf /etc/security/limits.conf
\cp ${DIR}/sysctl.conf /etc/sysctl.conf
/bin/tar xvf ${DOCKER_FILE}
\cp docker/* /usr/bin
\cp containerd.service /lib/systemd/system/containerd.service
\cp docker.service /lib/systemd/system/docker.service
\cp docker.socket /lib/systemd/system/docker.socket
\cp ${DIR}/docker-compose-Linux-x86_64_1.24.1 /usr/bin/docker-compose
groupadd docker && useradd docker -g docker
id -u magedu &> /dev/null
if [ $? -ne 0 ];then
useradd magedu
usermod magedu -G docker
fi
systemctl enable containerd.service && systemctl restart containerd.service
systemctl enable docker.service && systemctl restart docker.service
systemctl enable docker.socket && systemctl restart docker.socket
fi
}
ubuntu_install_docker(){
grep "Ubuntu" /etc/issue &> /dev/null
if [ $? -eq 0 ];then
/bin/echo "当前系统是`cat /etc/issue`,即将开始系统初始化、配置docker-compose与安装docker" && sleep 1
\cp ${DIR}/limits.conf /etc/security/limits.conf
\cp ${DIR}/sysctl.conf /etc/sysctl.conf
/bin/tar xvf ${DOCKER_FILE}
\cp docker/* /usr/bin
\cp containerd.service /lib/systemd/system/containerd.service
\cp docker.service /lib/systemd/system/docker.service
\cp docker.socket /lib/systemd/system/docker.socket
\cp ${DIR}/docker-compose-Linux-x86_64_1.24.1 /usr/bin/docker-compose
ulimit -n 1000000
/bin/su -c - ceamg "ulimit -n 1000000"
/bin/echo "docker 安装完成!" && sleep 1
id -u magedu &> /dev/null
if [ $? -ne 0 ];then
groupadd -r docker
useradd -r -m -g docker docker
fi
systemctl enable containerd.service && systemctl restart containerd.service
systemctl enable docker.service && systemctl restart docker.service
systemctl enable docker.socket && systemctl restart docker.socket
fi
}
main(){
centos_install_docker
ubuntu_install_docker
}
main
sudo tee /etc/docker/daemon.json <<-'EOF'
{
"registry-mirrors": ["https://lc2kkql3.mirror.aliyuncs.com"],
"storage-driver": "overlay",
"data-root": "/data/docker"
}
EOF
sudo systemctl daemon-reload
sudo systemctl restart docker
root@master01:~# cat /etc/sysctl.conf
net.ipv4.ip_forward=1
vm.max_map_count=262144
kernel.pid_max=4194303
fs.file-max=1000000
net.ipv4.tcp_max_tw_buckets=6000
net.netfilter.nf_conntrack_max=2097152
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
vm.swappiness=0
root@master01:/apps/docker# bash docker-install.sh
当前系统是Ubuntu 20.04.3 LTS \n \l,即将开始系统初始化、配置docker-compose与安装docker
docker/
docker/dockerd
docker/docker-proxy
docker/containerd-shim
docker/docker-init
docker/docker
docker/runc
docker/ctr
docker/containerd
su: user jack does not exist
docker 安装完成!
Created symlink /etc/systemd/system/multi-user.target.wants/containerd.service → /lib/systemd/system/containerd.service.
Created symlink /etc/systemd/system/multi-user.target.wants/docker.service → /lib/systemd/system/docker.service.
Created symlink /etc/systemd/system/sockets.target.wants/docker.socket → /lib/systemd/system/docker.socket.
reboot
1.3 安装ansible
#部署节点安装ansible
root@master01:~# apt install python3-pip git
root@master01:~# pip3 install ansible -i https://mirrors.aliyun.com/pypi/simple/
root@master01:~# ansible --version
ansible [core 2.13.7]
config file = None
configured module search path = ['/root/.ansible/plugins/modules', '/usr/share/ansible/plugins/modules']
ansible python module location = /usr/local/lib/python3.8/dist-packages/ansible
ansible collection location = /root/.ansible/collections:/usr/share/ansible/collections
executable location = /usr/local/bin/ansible
python version = 3.8.10 (default, Nov 14 2022, 12:59:47) [GCC 9.4.0]
jinja version = 3.1.2
libyaml = True
1.4 配置集群免秘钥登录
#⽣成密钥对
root@k8s-master1:~# ssh-keygen
#安装sshpass命令⽤于同步公钥到各k8s服务器
# apt-get install sshpass
#分发公钥脚本：
root@k8s-master1:~# cat scp-key.sh
#!/bin/bash
#⽬标主机列表
IP="
10.1.0.32
10.1.0.33
10.1.0.34
10.1.0.35
10.1.0.38
"
for node in ${IP};do
sshpass -p ceamg.com ssh-copy-id ${node} -o StrictHostKeyChecking=no
if [ $? -eq 0 ];then
echo "${node} 秘钥copy完成"
else
echo "${node} 秘钥copy失败"
fi
done
1.5 部署节点下载kubeasz部署项⽬及组件
使⽤ **master01 **作为部署节点
GitHub - easzlab/kubeasz: 使用Ansible脚本安装K8S集群，介绍组件交互原理，方便直接，不受国内网络环境影响
root@k8s-master1:~# export release=3.3.1
root@k8s-master1:~# curl -C- -fLO --retry 3 https://github.com/easzlab/kubeasz/releases/download/${release}/ezdown
root@master01:~# chmod a+x ezdown
root@master01:~# ./ezdown -D
2023-01-02 13:28:24 INFO Action begin: download_all
2023-01-02 13:28:24 INFO downloading docker binaries, version 19.03.15
--2023-01-02 13:28:24-- https://mirrors.tuna.tsinghua.edu.cn/docker-ce/linux/static/stable/x86_64/docker-19.03.15.tgz
Resolving mirrors.tuna.tsinghua.edu.cn (mirrors.tuna.tsinghua.edu.cn)... 101.6.15.130, 2402:f000:1:400::2
Connecting to mirrors.tuna.tsinghua.edu.cn (mirrors.tuna.tsinghua.edu.cn)|101.6.15.130|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 62436240 (60M) [application/octet-stream]
Saving to: ‘docker-19.03.15.tgz’
docker-19.03.15.tgz 100%[========================================================================================================================>] 59.54M 11.2MB/s in 5.5s
2023-01-02 13:28:29 (10.9 MB/s) - ‘docker-19.03.15.tgz’ saved [62436240/62436240]
2023-01-02 13:28:31 WARN docker is already running.
2023-01-02 13:28:31 INFO downloading kubeasz: 3.3.1
2023-01-02 13:28:31 DEBUG run a temporary container
Unable to find image 'easzlab/kubeasz:3.3.1' locally
3.3.1: Pulling from easzlab/kubeasz
Status: Image is up to date for easzlab/kubeasz:3.3.1
docker.io/easzlab/kubeasz:3.3.1
2023-01-02 13:41:44 INFO Action successed: download_all
root@master01:~# cd /etc/kubeasz/
root@master01:/etc/kubeasz/down# ll
total 1136932
drwxr-xr-x 2 root root 4096 Jan 2 13:41 ./
drwxrwxr-x 12 root root 4096 Jan 2 13:32 ../
-rw------- 1 root root 383673856 Jan 2 13:35 calico_v3.19.4.tar
-rw------- 1 root root 48941568 Jan 2 13:36 coredns_1.9.3.tar
-rw------- 1 root root 246784000 Jan 2 13:39 dashboard_v2.5.1.tar
-rw-r--r-- 1 root root 62436240 Feb 1 2021 docker-19.03.15.tgz
-rw------- 1 root root 106171392 Jan 2 13:37 k8s-dns-node-cache_1.21.1.tar
-rw------- 1 root root 179129856 Jan 2 13:41 kubeasz_3.3.1.tar
-rw------- 1 root root 43832320 Jan 2 13:40 metrics-scraper_v1.0.8.tar
-rw------- 1 root root 65683968 Jan 2 13:41 metrics-server_v0.5.2.tar
-rw------- 1 root root 721408 Jan 2 13:41 pause_3.7.tar
-rw------- 1 root root 26815488 Jan 2 13:32 registry-2.tar
上述脚本运行成功后，所有文件（kubeasz代码、二进制、离线镜像）均已整理好放入目录/etc/kubeasz
2.部署 harbor 镜像仓库
2.1 创建自签ssl证书
#本地解析
root@harbor01:~# echo "10.1.0.38 harbor.ceamg.com >> /etc/hosts"
mkdir -p /data/cert
cd /data/cert
#创建ca和harbor证书请求
openssl genrsa -out ca.key 4096
openssl req -x509 -new -nodes -sha512 -days 7300 -subj "/C=CN/ST=Beijing/L=Beijing/O=example/OU=Personal/CN=harbor.ceamg.com" -key ca.key -out ca.crt
openssl genrsa -out harbor.ceamg.com.key 4096
openssl req -sha512 -new -subj "/C=CN/ST=Beijing/L=Beijing/O=example/OU=Personal/CN=harbor.ceamg.com" -key harbor.ceamg.com.key -out harbor.ceamg.com.csr
#创建v3文件
cat > v3.ext <<-EOF
authorityKeyIdentifier=keyid,issuer
basicConstraints=CA:FALSE
keyUsage = digitalSignature, nonRepudiation, keyEncipherment, dataEncipherment
extendedKeyUsage = serverAuth
subjectAltName = @alt_names
[alt_names]
DNS.1=harbor.ceamg.com
DNS.2=harbor
DNS.3=ks-allinone
EOF
#使用v3文件签发harbor证书
openssl x509 -req -sha512 -days 7300 -extfile v3.ext -CA ca.crt -CAkey ca.key -CAcreateserial -in harbor.ceamg.com.csr -out harbor.ceamg.com.crt
#转换成cert
openssl x509 -inform PEM -in harbor.ceamg.com.crt -out harbor.ceamg.com.cert
#添加根证书让系统信任证书
root@harbor01:/data/cert# cp harbor.ceamg.com.crt /usr/local/share/ca-certificates/
root@harbor01:/data/cert# update-ca-certificates
Updating certificates in /etc/ssl/certs...
rehash: warning: skipping ca-certificates.crt,it does not contain exactly one certificate or CRL
1 added, 0 removed; done.
Running hooks in /etc/ca-certificates/update.d...
done.
#update-ca-certificates命令将PEM格式的根证书内容附加到/etc/ssl/certs/ca-certificates.crt ，而/etc/ssl/certs/ca-certificates.crt 包含了系统自带的各种可信根证书.
2.2 修改harbor配置
root@harbor01:/apps/harbor/harbor# cp harbor.yml.tmpl harbor.yml
root@harbor01:/apps/harbor/harbor# grep -v "#" harbor.yml | grep -v "^$"
hostname: harbor.ceamg.com
http:
port: 80
https:
port: 443
certificate: /data/cert/harbor.ceamg.com.crt
private_key: /apps/harbor/certs/harbor.ceamg.com.key
harbor_admin_password: ceamg.com
database:
password: root123
max_idle_conns: 100
max_open_conns: 900
conn_max_lifetime: 5m
conn_max_idle_time: 0
data_volume: /data
trivy:
ignore_unfixed: false
skip_update: false
offline_scan: false
security_check: vuln
insecure: false
jobservice:
max_job_workers: 10
notification:
webhook_job_max_retry: 10
chart:
absolute_url: disabled
log:
level: info
local:
rotate_count: 50
rotate_size: 200M
location: /var/log/harbor
_version: 2.7.0
proxy:
http_proxy:
https_proxy:
no_proxy:
components:
- core
- jobservice
- trivy
upload_purging:
enabled: true
age: 168h
interval: 24h
dryrun: false
cache:
enabled: false
expire_hours: 24
2.3 安装harbor
Harbor – Reconfigure Harbor and Manage the Harbor Lifecycle
有扫描–with-trivy ,有认证–with-notary，有helm charts 模块退出–with-chartmuseum 其中–with-clair已弃用
#更新配置文件
root@harbor01:/apps/harbor/harbor# ./prepare
root@harbor01:/apps/harbor/harbor# ./install.sh --with-notary --with-trivy --with-chartmuseum
[Step 0]: checking if docker is installed ...
Note: docker version: 19.03.15
[Step 1]: checking docker-compose is installed ...
Note: docker-compose version: 1.24.1
[Step 2]: loading Harbor images ...
8991ee7e1c66: Loading layer [==================================================>] 37.72MB/37.72MB
caef0c5d2fe0: Loading layer [==================================================>] 43.84MB/43.84MB
d0ae0913849c: Loading layer [==================================================>] 66.03MB/66.03MB
d6c3137fc4e6: Loading layer [==================================================>] 18.2MB/18.2MB
db156fb6962c: Loading layer [==================================================>] 65.54kB/65.54kB
578a990cf79f: Loading layer [==================================================>] 2.56kB/2.56kB
9415b3c8b317: Loading layer [==================================================>] 1.536kB/1.536kB
bdb2dfba8b17: Loading layer [==================================================>] 12.29kB/12.29kB
6a1b6c491cd2: Loading layer [==================================================>] 2.613MB/2.613MB
c35c2488b48b: Loading layer [==================================================>] 407kB/407kB
Loaded image: goharbor/prepare:v2.7.0
Loaded image: goharbor/harbor-db:v2.7.0
Loaded image: goharbor/harbor-core:v2.7.0
Loaded image: goharbor/harbor-log:v2.7.0
Loaded image: goharbor/harbor-exporter:v2.7.0
Loaded image: goharbor/nginx-photon:v2.7.0
Loaded image: goharbor/chartmuseum-photon:v2.7.0
Loaded image: goharbor/harbor-portal:v2.7.0
Loaded image: goharbor/harbor-jobservice:v2.7.0
Loaded image: goharbor/harbor-registryctl:v2.7.0
Loaded image: goharbor/registry-photon:v2.7.0
Loaded image: goharbor/notary-server-photon:v2.7.0
Loaded image: goharbor/redis-photon:v2.7.0
Loaded image: goharbor/notary-signer-photon:v2.7.0
Loaded image: goharbor/trivy-adapter-photon:v2.7.0
[Step 3]: preparing environment ...
[Step 4]: preparing harbor configs ...
prepare base dir is set to /apps/harbor/harbor
Generated configuration file: /config/portal/nginx.conf
Generated configuration file: /config/log/logrotate.conf
Generated configuration file: /config/log/rsyslog_docker.conf
Generated configuration file: /config/nginx/nginx.conf
Generated configuration file: /config/core/env
Generated configuration file: /config/core/app.conf
Generated configuration file: /config/registry/config.yml
Generated configuration file: /config/registryctl/env
Generated configuration file: /config/registryctl/config.yml
Generated configuration file: /config/db/env
Generated configuration file: /config/jobservice/env
Generated configuration file: /config/jobservice/config.yml
Generated and saved secret to file: /data/secret/keys/secretkey
Successfully called func: create_root_cert
Generated configuration file: /config/trivy-adapter/env
Generated configuration file: /compose_location/docker-compose.yml
Clean up the input dir
Note: stopping existing Harbor instance ...
Removing network harbor_harbor
WARNING: Network harbor_harbor not found.
[Step 5]: starting Harbor ...
Creating network "harbor_harbor" with the default driver
Creating harbor-log ... done
Creating redis ... done
Creating harbor-portal ... done
Creating registry ... done
Creating harbor-db ... done
Creating registryctl ... done
Creating trivy-adapter ... done
Creating harbor-core ... done
Creating harbor-jobservice ... done
Creating nginx ... done
✔ ----Harbor has been installed and started successfully.----
2.4 harbor 调试
#关闭 harbor
$~ sudo docker-compose down -v
#更新配置
vim /apps/harbor.yml
prepare
#重新生成配置文件,增 加上其他chart功能等
sudo prepare --with-notary --with-trivy --with-chartmuseum
#启动 harbor
$~ sudo docker-compose up -d
3.创建集群配置实例
3.1 ⽣成k8s集群 hosts⽂件
root@master01:/etc/kubeasz# ./ezctl new k8s-01
2023-01-03 04:52:33 DEBUG generate custom cluster files in /etc/kubeasz/clusters/k8s-01
2023-01-03 04:52:33 DEBUG set versions
2023-01-03 04:52:33 DEBUG cluster k8s-01: files successfully created.
2023-01-03 04:52:33 INFO next steps 1: to config '/etc/kubeasz/clusters/k8s-01/hosts'
2023-01-03 04:52:33 INFO next steps 2: to config '/etc/kubeasz/clusters/k8s-01/config.yml'
# 'NEW_INSTALL': 'true' to install a harbor server; 'false' to integrate with existed one
[harbor]
10.1.0.38 NEW_INSTALL=false
# [optional] loadbalance for accessing k8s from outside
[ex_lb]
#192.168.1.6 LB_ROLE=backup EX_APISERVER_VIP=192.168.1.250 EX_APISERVER_PORT=8443
#192.168.1.7 LB_ROLE=master EX_APISERVER_VIP=192.168.1.250 EX_APISERVER_PORT=8443
# [optional] ntp server for the cluster
[chrony]
#192.168.1.1
[all:vars]
# --------- Main Variables ---------------
# Secure port for apiservers
SECURE_PORT="6443"
# Cluster container-runtime supported: docker, containerd
# if k8s version >= 1.24, docker is not supported
CONTAINER_RUNTIME="containerd"
# Network plugins supported: calico, flannel, kube-router, cilium, kube-ovn
CLUSTER_NETWORK="calico"
# Service proxy mode of kube-proxy: 'iptables' or 'ipvs'
PROXY_MODE="ipvs"
# K8S Service CIDR, not overlap with node(host) networking
SERVICE_CIDR="10.10.0.0/16"
# Cluster CIDR (Pod CIDR), not overlap with node(host) networking
CLUSTER_CIDR="10.20.0.0/16"
# NodePort Range
NODE_PORT_RANGE="30000-65535"
# Cluster DNS Domain
CLUSTER_DNS_DOMAIN="ceamg.local"
# -------- Additional Variables (don't change the default value right now) ---
# Binaries Directory
bin_dir="/usr/local/bin"
# Deploy Directory (kubeasz workspace)
base_dir="/etc/kubeasz"
# Directory for a specific cluster
cluster_dir="{{ base_dir }}/clusters/k8s-01"
# CA and other components cert/key Directory
ca_dir="/etc/kubernetes/ssl"
3.1 ⽣成k8s集群 config ⽂件
root@master01:/etc/kubeasz# vim /etc/kubeasz/clusters/k8s-01/config.yml
############################
# prepare
############################
# 可选离线安装系统软件包 (offline|online)
INSTALL_SOURCE: "online"
# 可选进行系统安全加固 github.com/dev-sec/ansible-collection-hardening
OS_HARDEN: false
############################
# role:deploy
############################
# default: ca will expire in 100 years
# default: certs issued by the ca will expire in 50 years
CA_EXPIRY: "876000h"
CERT_EXPIRY: "438000h"
# kubeconfig 配置参数
CLUSTER_NAME: "cluster1"
CONTEXT_NAME: "context-{{ CLUSTER_NAME }}"
# k8s version
K8S_VER: "1.24.2"
############################
# role:etcd
############################
# 设置不同的wal目录，可以避免磁盘io竞争，提高性能
ETCD_DATA_DIR: "/var/lib/etcd"
ETCD_WAL_DIR: ""
############################
# role:runtime [containerd,docker]
############################
# ------------------------------------------- containerd
# [.]启用容器仓库镜像
ENABLE_MIRROR_REGISTRY: true
# [containerd]基础容器镜像
SANDBOX_IMAGE: "easzlab.io.local:5000/easzlab/pause:3.7"
# [containerd]容器持久化存储目录
CONTAINERD_STORAGE_DIR: "/var/lib/containerd"
# ------------------------------------------- docker
# [docker]容器存储目录
DOCKER_STORAGE_DIR: "/var/lib/docker"
# [docker]开启Restful API
ENABLE_REMOTE_API: false
# [docker]信任的HTTP仓库
INSECURE_REG: '["http://easzlab.io.local:5000"]'
############################
# role:kube-master
############################
# k8s 集群 master 节点证书配置，可以添加多个ip和域名（比如增加公网ip和域名）
MASTER_CERT_HOSTS:
- "10.1.1.1"
- "k8s.easzlab.io"
#- "www.test.com"
# node 节点上 pod 网段掩码长度（决定每个节点最多能分配的pod ip地址）
# 如果flannel 使用 --kube-subnet-mgr 参数，那么它将读取该设置为每个节点分配pod网段
# https://github.com/coreos/flannel/issues/847
NODE_CIDR_LEN: 24
############################
# role:kube-node
############################
# Kubelet 根目录
KUBELET_ROOT_DIR: "/var/lib/kubelet"
# node节点最大pod 数
MAX_PODS: 300
# 配置为kube组件（kubelet,kube-proxy,dockerd等）预留的资源量
# 数值设置详见templates/kubelet-config.yaml.j2
KUBE_RESERVED_ENABLED: "yes"
# k8s 官方不建议草率开启 system-reserved, 除非你基于长期监控，了解系统的资源占用状况；
# 并且随着系统运行时间，需要适当增加资源预留，数值设置详见templates/kubelet-config.yaml.j2
# 系统预留设置基于 4c/8g 虚机，最小化安装系统服务，如果使用高性能物理机可以适当增加预留
# 另外，集群安装时候apiserver等资源占用会短时较大，建议至少预留1g内存
SYS_RESERVED_ENABLED: "no"
############################
# role:network [flannel,calico,cilium,kube-ovn,kube-router]
############################
# ------------------------------------------- flannel
# [flannel]设置flannel 后端"host-gw","vxlan"等
FLANNEL_BACKEND: "vxlan"
DIRECT_ROUTING: false
# [flannel] flanneld_image: "quay.io/coreos/flannel:v0.10.0-amd64"
flannelVer: "v0.15.1"
flanneld_image: "easzlab.io.local:5000/easzlab/flannel:{{ flannelVer }}"
# ------------------------------------------- calico
# [calico]设置 CALICO_IPV4POOL_IPIP=“off”,可以提高网络性能，条件限制详见 docs/setup/calico.md
CALICO_IPV4POOL_IPIP: "Always"
# [calico]设置 calico-node使用的host IP，bgp邻居通过该地址建立，可手工指定也可以自动发现
IP_AUTODETECTION_METHOD: "can-reach={{ groups['kube_master'][0] }}"
# [calico]设置calico 网络 backend: brid, vxlan, none
CALICO_NETWORKING_BACKEND: "brid"
# [calico]设置calico 是否使用route reflectors
# 如果集群规模超过50个节点，建议启用该特性
CALICO_RR_ENABLED: false
# CALICO_RR_NODES 配置route reflectors的节点，如果未设置默认使用集群master节点
# CALICO_RR_NODES: ["192.168.1.1", "192.168.1.2"]
CALICO_RR_NODES: []
# [calico]更新支持calico 版本: [v3.3.x] [v3.4.x] [v3.8.x] [v3.15.x]
calico_ver: "v3.19.4"
# [calico]calico 主版本
calico_ver_main: "{{ calico_ver.split('.')[0] }}.{{ calico_ver.split('.')[1] }}"
# ------------------------------------------- cilium
# [cilium]镜像版本
cilium_ver: "1.11.6"
cilium_connectivity_check: true
cilium_hubble_enabled: false
cilium_hubble_ui_enabled: false
# ------------------------------------------- kube-ovn
# [kube-ovn]选择 OVN DB and OVN Control Plane 节点，默认为第一个master节点
OVN_DB_NODE: "{{ groups['kube_master'][0] }}"
# [kube-ovn]离线镜像tar包
kube_ovn_ver: "v1.5.3"
# ------------------------------------------- kube-router
# [kube-router]公有云上存在限制，一般需要始终开启 ipinip；自有环境可以设置为 "subnet"
OVERLAY_TYPE: "full"
# [kube-router]NetworkPolicy 支持开关
FIREWALL_ENABLE: true
# [kube-router]kube-router 镜像版本
kube_router_ver: "v0.3.1"
busybox_ver: "1.28.4"
############################
# role:cluster-addon
############################
# coredns 自动安装
dns_install: "no"
corednsVer: "1.9.3"
ENABLE_LOCAL_DNS_CACHE: false
dnsNodeCacheVer: "1.21.1"
# 设置 local dns cache 地址
LOCAL_DNS_CACHE: "169.254.20.10"
# metric server 自动安装
metricsserver_install: "no"
metricsVer: "v0.5.2"
# dashboard 自动安装
dashboard_install: "no"
dashboardVer: "v2.5.1"
dashboardMetricsScraperVer: "v1.0.8"
# prometheus 自动安装
prom_install: "no"
prom_namespace: "monitor"
prom_chart_ver: "35.5.1"
# nfs-provisioner 自动安装
nfs_provisioner_install: "no"
nfs_provisioner_namespace: "kube-system"
nfs_provisioner_ver: "v4.0.2"
nfs_storage_class: "managed-nfs-storage"
nfs_server: "192.168.1.10"
nfs_path: "/data/nfs"
# network-check 自动安装
network_check_enabled: false
network_check_schedule: "*/5 * * * *"
############################
# role:harbor
############################
# harbor version，完整版本号
HARBOR_VER: "v2.1.3"
HARBOR_DOMAIN: "harbor.easzlab.io.local"
HARBOR_TLS_PORT: 8443
# if set 'false', you need to put certs named harbor.pem and harbor-key.pem in directory 'down'
HARBOR_SELF_SIGNED_CERT: true
# install extra component
HARBOR_WITH_NOTARY: false
HARBOR_WITH_TRIVY: false
HARBOR_WITH_CLAIR: false
HARBOR_WITH_CHARTMUSEUM: true
4.步骤1-基础环境初始化
root@master01:/etc/kubeasz# ./ezctl help setup
Usage: ezctl setup <cluster> <step>
available steps:
01 prepare to prepare CA/certs & kubeconfig & other system settings
02 etcd to setup the etcd cluster
03 container-runtime to setup the container runtime(docker or containerd)
04 kube-master to setup the master nodes
05 kube-node to setup the worker nodes
06 network to setup the network plugin
07 cluster-addon to setup other useful plugins
90 all to run 01~07 all at once
10 ex-lb to install external loadbalance for accessing k8s from outside
11 harbor to install a new harbor server or to integrate with an existed one
examples: ./ezctl setup test-k8s 01 (or ./ezctl setup test-k8s prepare)
./ezctl setup test-k8s 02 (or ./ezctl setup test-k8s etcd)
./ezctl setup test-k8s all
./ezctl setup test-k8s 04 -t restart_master
vim playbooks/01.prepare.yml
#系统基础初始化主机配置
root@master01:/etc/kubeasz# ./ezctl setup k8s-01 01
#准备CA和基础系统设置
5.步骤2-部署etcd集群
可更改启动脚本路径及版本等⾃定义配置
root@master01:/etc/kubeasz# ./ezctl setup k8s-01 02
ansible-playbook -i clusters/k8s-01/hosts -e @clusters/k8s-01/config.yml playbooks/02.etcd.yml
2023-01-03 13:39:13 INFO cluster:k8s-01 setup step:02 begins in 5s, press any key to abort
健康检查
export NODE_IPS="10.1.0.34 10.1.0.35"
root@etcd01:~# for ip in ${NODE_IPS}; do ETCDCTL_API=3 /usr/local/bin/etcdctl --endpoints=https://${ip}:2379 --cacert=/etc/kubernetes/ssl/ca.pem --cert=/etc/kubernetes/ssl/etcd.pem --key=/etc/kubernetes/ssl/etcd-key.pem endpoint health; done
https://10.1.0.34:2379 is healthy: successfully committed proposal: took = 14.95631ms
https://10.1.0.35:2379 is healthy: successfully committed proposal: took = 15.037491ms
注：以上返回信息表示etcd集群运⾏正常，否则异常！
部署containerd
同步docker证书脚本：
#!/bin/bash
#⽬标主机列表
IP="
10.1.0.32
10.1.0.33
10.1.0.34
10.1.0.35
"
for node in ${IP};do
sshpass -p ceamg.com ssh-copy-id ${node} -o StrictHostKeyChecking=no
if [ $? -eq 0 ];then
echo "${node} 秘钥copy完成"
echo "${node} 秘钥copy完成,准备环境初始化....."
ssh ${node} "mkdir /etc/containerd/certs.d/harbor.ceamg.com -p"
echo "Harbor 证书创建成功!"
scp /etc/containerd/certs.d/harbor.ceamg.com/harbor.ceamg.com.cert /etc/containerd/certs.d/harbor.ceamg.com/harbor.ceamg.com.crt /etc/containerd/certs.d/harbor.ceamg.com/harbor.ceamg.com.key /etc/containerd/certs.d/harbor.ceamg.com/ca.crt ${node}:/etc/containerd/certs.d/harbor.ceamg.com/
echo "Harbor 证书拷贝成功!"
ssh ${node} "echo "10.1.0.38 harbor.ceamg.com" >> /etc/hosts"
echo "host 解析添加完成"
#scp -r /root/.docker ${node}:/root/
#echo "Harbor 认证 件拷完成!"
else
echo "${node} 秘钥copy失败"
fi
done
#执⾏脚本进⾏证书分发
root@k8s-master1:/etc/kubeasz# bash /root/scp-key.sh
6.步骤3-部署运行时环境
项目根据k8s版本提供不同的默认容器运行时：
- k8s 版本 < 1.24 时，支持docker containerd 可选
- k8s 版本 >= 1.24 时，仅支持 containerd
6.1 kubeasz 集成安装 containerd
注意：k8s 1.24以后，项目已经设置默认容器运行时为 containerd，无需手动修改
./ezctl setup k8s-01 05
6.2 配置containerd 对接私有harbor仓库
修改role模板文件
vim roles/containerd/templates/config.toml.j2
主要修改如下：
[plugins."io.containerd.grpc.v1.cri".registry]
[plugins."io.containerd.grpc.v1.cri".registry.auths]
[plugins."io.containerd.grpc.v1.cri".registry.configs]
[plugins."io.containerd.grpc.v1.cri".registry.configs."https://harbor.ceamg.com"]
username = "admin"
password = "ceamg.com"
[plugins."io.containerd.grpc.v1.cri".registry.configs."easzlab.io.local:5000".tls]
insecure_skip_verify = true
[plugins."io.containerd.grpc.v1.cri".registry.configs."harbor.ceamg.com".tls]
insecure_skip_verify = true
ca_file = "/etc/containerd/certs.d/harbor.ceamg.com/ca.crt"
cert_file = "/etc/containerd/certs.d/harbor.ceamg.com/harbor.ceamg.com.cert"
key_file = "/etc/containerd/certs.d/harbor.ceamg.com/harbor.ceamg.com.key"
[plugins."io.containerd.grpc.v1.cri".registry.headers]
[plugins."io.containerd.grpc.v1.cri".registry.mirrors]
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."easzlab.io.local:5000"]
endpoint = ["http://easzlab.io.local:5000"]
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."harbor.ceamg.com"]
endpoint = ["https://harbor.ceamg.com"]
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."docker.io"]
endpoint = ["https://lc2kkql3.mirror.aliyuncs.com","https://docker.mirrors.ustc.edu.cn", "http://hub-mirror.c.163.com"]
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."gcr.io"]
endpoint = ["https://gcr.mirrors.ustc.edu.cn"]
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."k8s.gcr.io"]
endpoint = ["https://gcr.mirrors.ustc.edu.cn/google-containers/"]
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."quay.io"]
endpoint = ["https://quay.mirrors.ustc.edu.cn"]
[plugins."io.containerd.grpc.v1.cri".registry.auths."https://harbor.ceamg.com"]
[plugins."io.containerd.grpc.v1.cri".x509_key_pair_streaming]
tls_cert_file = ""
tls_key_file = ""
6.3 containerd 使用证书对接harbor实现上传下载
6.3.1 使用脚本同步证书到客户端
#!/bin/bash
#目标主机列表
IP="
10.1.0.32
10.1.0.33
10.1.0.34
10.1.0.35
"
for node in ${IP};do
sshpass -p ceamg.com ssh-copy-id ${node} -o StrictHostKeyChecking=no
if [ $? -eq 0 ];then
echo "${node} 秘钥copy完成"
echo "${node} 秘钥copy完成,准备环境初始化....."
ssh ${node} "mkdir /etc/containerd/certs.d/harbor.ceamg.com -p"
echo "Harbor 证书创建成功!"
scp /etc/containerd/certs.d/harbor.ceamg.com/harbor.ceamg.com.cert /etc/containerd/certs.d/harbor.ceamg.com/harbor.ceamg.com.crt /etc/containerd/certs.d/harbor.ceamg.com/harbor.ceamg.com.key /etc/containerd/certs.d/harbor.ceamg.com/ca.crt ${node}:/etc/containerd/certs.d/harbor.ceamg.com/
echo "Harbor 证书拷贝成功!"
ssh ${node} "echo "10.1.0.38 harbor.ceamg.com" >> /etc/hosts"
echo "host 解析添加完成"
#scp -r /root/.docker ${node}:/root/
#echo "Harbor 认证件拷完成!"
else
echo "${node} 秘钥copy失败"
fi
done
6.3.2 测试containerd 客户端使用证书登录harbor
推送镜像
nerdctl.pdf
root@master01:/etc/containerd/certs.d/harbor.ceamg.com# ls
ca.crt harbor.ceamg.com.cert harbor.ceamg.com.crt harbor.ceamg.com.key
root@master01:/etc/containerd/certs.d/harbor.ceamg.com# nerdctl login harbor.ceamg.com
WARNING: Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store
Login Succeeded
root@master01:/etc/containerd/certs.d/harbor.ceamg.com# nerdctl images
REPOSITORY TAG IMAGE ID CREATED PLATFORM SIZE BLOB SIZE
nginx latest 0047b729188a 4 hours ago linux/amd64 149.4 MiB 54.2 MiB
harbor.ceamg.com/library/nginx latest 0047b729188a 3 hours ago linux/amd64 149.4 MiB 54.2 MiB
root@master01:/etc/containerd/certs.d/harbor.ceamg.com# nerdctl push harbor.ceamg.com/library/nginx
INFO[0000] pushing as a reduced-platform image (application/vnd.docker.distribution.manifest.list.v2+json, sha256:3f727bfae5cee62f35f014637b350dbc1d0b416bdd1717b61c5ce5b036771aa0)
index-sha256:3f727bfae5cee62f35f014637b350dbc1d0b416bdd1717b61c5ce5b036771aa0: done |++++++++++++++++++++++++++++++++++++++|
manifest-sha256:9a821cadb1b13cb782ec66445325045b2213459008a41c72d8d87cde94b33c8c: done |++++++++++++++++++++++++++++++++++++++|
config-sha256:1403e55ab369cd1c8039c34e6b4d47ca40bbde39c371254c7cba14756f472f52: done |++++++++++++++++++++++++++++++++++++++|
elapsed: 1.1 s total: 9.3 Ki (8.5 KiB/s)
7.步骤4-部署master
cat playbooks/04.kube-master.yml
- hosts: kube_master
roles:
- kube-lb # 四层负载均衡，监听在127.0.0.1:6443，转发到真实master节点apiserver服务
- kube-master #
- kube-node # 因为网络、监控等daemonset组件，master节点也推荐安装kubelet和kube-proxy服务
...
root@master01:/etc/kubeasz# ./ezctl setup k8s-01 04
ansible-playbook -i clusters/k8s-01/hosts -e @clusters/k8s-01/config.yml playbooks/04.kube-master.yml
2023-01-03 14:07:04 INFO cluster:k8s-01 setup step:04 begins in 5s, press any key to abort:
验证 master 集群
# 查看进程状态
systemctl status kube-apiserver
systemctl status kube-controller-manager
systemctl status kube-scheduler
# 查看进程运行日志
journalctl -u kube-apiserver
journalctl -u kube-controller-manager
journalctl -u kube-scheduler
执行 kubectl get componentstatus 可以看到
root@master01:/etc/kubeasz# kubectl get componentstatus
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME STATUS MESSAGE ERROR
scheduler Healthy ok
controller-manager Healthy ok
etcd-1 Healthy {"health":"true","reason":""}
etcd-0 Healthy {"health":"true","reason":""}
8.步骤5-部署node节点
kube_node 是集群中运行工作负载的节点，前置条件需要先部署好kube_master节点，它需要部署如下组件：
cat playbooks/05.kube-node.yml
- hosts: kube_node
roles:
- { role: kube-lb, when: "inventory_hostname not in groups['kube_master']" }
- { role: kube-node, when: "inventory_hostname not in groups['kube_master']" }
- kube-lb：由nginx裁剪编译的四层负载均衡，用于将请求转发到主节点的 apiserver服务
- kubelet：kube_node上最主要的组件
- kube-proxy： 发布应用服务与负载均衡
root@master01:/etc/kubeasz# ./ezctl setup k8s-01 05
ansible-playbook -i clusters/k8s-01/hosts -e @clusters/k8s-01/config.yml playbooks/05.kube-node.yml
2023-01-04 09:06:25 INFO cluster:k8s-01 setup step:05 begins in 5s, press any key to abort:
验证 node 状态
systemctl status kubelet # 查看状态
systemctl status kube-proxy
journalctl -u kubelet # 查看日志
journalctl -u kube-proxy
运行 kubectl get node 可以看到类似
root@worker01:/etc/containerd/certs.d/harbor.ceamg.com# kubectl get nodes
NAME STATUS ROLES AGE VERSION
10.1.0.31 Ready,SchedulingDisabled master 21h v1.24.2
10.1.0.32 Ready node 21h v1.24.2
10.1.0.33 Ready node 21h v1.24.2
9.步骤6-部署网络组件
首先回顾下K8S网络设计原则，在配置集群网络插件或者实践K8S 应用/服务部署请牢记这些原则：
- 1.每个Pod都拥有一个独立IP地址，Pod内所有容器共享一个网络命名空间
- 2.集群内所有Pod都在一个直接连通的扁平网络中，可通过IP直接访问
- 所有容器之间无需NAT就可以直接互相访问
- 所有Node和所有容器之间无需NAT就可以直接互相访问
- 容器自己看到的IP跟其他容器看到的一样
- 3.Service cluster IP只可在集群内部访问，外部请求需要通过NodePort、LoadBalance或者Ingress来访问
calico 是k8s社区最流行的网络插件之一，也是k8s-conformance test 默认使用的网络插件，功能丰富，支持network policy；是当前kubeasz项目的默认网络插件。
如果需要安装calico，请在clusters/xxxx/hosts文件中设置变量 CLUSTER_NETWORK="calico"
9.1 使⽤calico⽹络组件
vim clusters/k8s-01/config.yml
# ------------------------------------------- calico
# [calico]设置 CALICO_IPV4POOL_IPIP=“off”,可以提高网络性能，条件限制详见 docs/setup/calico.md
CALICO_IPV4POOL_IPIP: "Always"
# [calico]设置 calico-node使用的host IP，bgp邻居通过该地址建立，可手工指定也可以自动发现
IP_AUTODETECTION_METHOD: "can-reach={{ groups['kube_master'][0] }}"
# [calico]设置calico 网络 backend: brid, vxlan, none
CALICO_NETWORKING_BACKEND: "brid"
# [calico]设置calico 是否使用route reflectors
# 如果集群规模超过50个节点，建议启用该特性
CALICO_RR_ENABLED: false
# CALICO_RR_NODES 配置route reflectors的节点，如果未设置默认使用集群master节点
# CALICO_RR_NODES: ["192.168.1.1", "192.168.1.2"]
CALICO_RR_NODES: []
# [calico]更新支持calico 版本: [v3.3.x] [v3.4.x] [v3.8.x] [v3.15.x]
calico_ver: "v3.19.4"
# [calico]calico 主版本
calico_ver_main: "{{ calico_ver.split('.')[0] }}.{{ calico_ver.split('.')[1] }}"
./ezctl setup k8s-01 06
9.2 验证calico网络
执行calico安装成功后可以验证如下：(需要等待镜像下载完成，有时候即便上一步已经配置了docker国内加速，还是可能比较慢，请确认以下容器运行起来以后，再执行后续验证步骤)
9.3 查看所有calico节点状态
root@master01:/etc/kubeasz# kubectl get pod -A -o wide
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system calico-kube-controllers-5c8bb696bb-hf2cp 1/1 Running 0 6m10s 10.1.0.33 10.1.0.33 <none> <none>
kube-system calico-node-6nlt6 1/1 Running 0 6m10s 10.1.0.32 10.1.0.32 <none> <none>
kube-system calico-node-fd6rj 1/1 Running 0 6m10s 10.1.0.33 10.1.0.33 <none> <none>
kube-system calico-node-lhgh4 1/1 Running 0 6m10s 10.1.0.31 10.1.0.31 <none> <none>
root@master01:/etc/kubeasz# calicoctl node status
Calico process is running.
IPv4 BGP status
+--------------+-------------------+-------+----------+-------------+
| PEER ADDRESS | PEER TYPE | STATE | SINCE | INFO |
+--------------+-------------------+-------+----------+-------------+
| 10.1.0.32 | node-to-node mesh | up | 04:16:44 | Established |
| 10.1.0.33 | node-to-node mesh | up | 04:16:43 | Established |
+--------------+-------------------+-------+----------+-------------+
9.4 创建容器测试网络通信
root@master01:/etc/kubeasz# kubectl run net-test1 --image=harbor.ceamg.com/library/alpine sleep 360000
pod/net-test1 created
root@master01:/etc/kubeasz# kubectl run net-test2 --image=harbor.ceamg.com/library/alpine sleep 360000
pod/net-test2 created
root@master01:/etc/kubeasz# kubectl run net-test3 --image=harbor.ceamg.com/library/alpine sleep 360000
pod/net-test3 created
root@master01:/etc/kubeasz# kubectl get pod -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
net-test1 1/1 Running 0 19s 10.20.5.3 10.1.0.32 <none> <none>
net-test2 1/1 Running 0 15s 10.20.30.67 10.1.0.33 <none> <none>
net-test3 1/1 Running 0 12s 10.20.30.68 10.1.0.33 <none> <none>
test 1/1 Running 0 16m 10.20.5.1 10.1.0.32 <none> <none>
root@master01:/etc/kubeasz# kubectl exec -it net-test1 -- sh
/ # ping 10.20.30.67
PING 10.20.30.67 (10.20.30.67): 56 data bytes
64 bytes from 10.20.30.67: seq=0 ttl=62 time=0.481 ms
^C
--- 10.20.30.67 ping statistics ---
1 packets transmitted, 1 packets received, 0% packet loss
round-trip min/avg/max = 0.481/0.481/0.481 ms
/ # ping 10.20.30.68
PING 10.20.30.68 (10.20.30.68): 56 data bytes
64 bytes from 10.20.30.68: seq=0 ttl=62 time=0.631 ms
64 bytes from 10.20.30.68: seq=1 ttl=62 time=1.360 ms
64 bytes from 10.20.30.68: seq=2 ttl=62 time=0.420 ms
^C
--- 10.20.30.68 ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 0.420/0.803/1.360 ms
/ # ping 223.5.5.5
PING 223.5.5.5 (223.5.5.5): 56 data bytes
64 bytes from 223.5.5.5: seq=0 ttl=114 time=7.597 ms
64 bytes from 223.5.5.5: seq=1 ttl=114 time=7.072 ms
64 bytes from 223.5.5.5: seq=2 ttl=114 time=7.583 ms
^C
--- 223.5.5.5 ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 7.072/7.417/7.597 ms
10.步骤7-安装集群插件-coredns
DNS 是 k8s 集群首要部署的组件，它为集群中的其他 pods 提供域名解析服务；主要可以解析 集群服务名 SVC 和 Pod hostname；目前建议部署 coredns。
10.1 下载二进制包
kubernetes/CHANGELOG-1.24.md at master · kubernetes/kubernetes
root@master01:/usr/local/src# ll
total 489740
drwxr-xr-x 2 root root 4096 Jan 4 13:09 ./
drwxr-xr-x 13 root root 4096 Jan 1 13:20 ../
-rw-r--r-- 1 root root 30495559 Jan 4 13:09 kubernetes-client-linux-amd64.tar.gz
-rw-r--r-- 1 root root 123361203 Jan 4 13:09 kubernetes-node-linux-amd64.tar.gz
-rw-r--r-- 1 root root 347075448 Jan 4 13:09 kubernetes-server-linux-amd64.tar.gz
-rw-r--r-- 1 root root 532769 Jan 4 13:09 kubernetes.tar.gz
#解压后
root@master01:/usr/local/src/kubernetes# ll
total 36996
drwxr-xr-x 10 root root 4096 Dec 8 18:31 ./
drwxr-xr-x 3 root root 4096 Jan 4 13:11 ../
drwxr-xr-x 2 root root 4096 Dec 8 18:26 addons/
drwxr-xr-x 3 root root 4096 Dec 8 18:31 client/
drwxr-xr-x 9 root root 4096 Dec 8 18:31 cluster/
drwxr-xr-x 2 root root 4096 Dec 8 18:31 docs/
drwxr-xr-x 3 root root 4096 Dec 8 18:31 hack/
-rw-r--r-- 1 root root 37826576 Dec 8 18:26 kubernetes-src.tar.gz
drwxr-xr-x 4 root root 4096 Dec 8 18:31 LICENSES/
drwxr-xr-x 3 root root 4096 Dec 8 18:25 node/
-rw-r--r-- 1 root root 4443 Dec 8 18:31 README.md
drwxr-xr-x 3 root root 4096 Dec 8 18:31 server/
-rw-r--r-- 1 root root 8 Dec 8 18:31 version
#插件目录
root@master01:/usr/local/src/kubernetes/cluster/addons# ll
total 80
drwxr-xr-x 18 root root 4096 Dec 8 18:31 ./
drwxr-xr-x 9 root root 4096 Dec 8 18:31 ../
drwxr-xr-x 2 root root 4096 Dec 8 18:31 addon-manager/
drwxr-xr-x 3 root root 4096 Dec 8 18:31 calico-policy-controller/
drwxr-xr-x 3 root root 4096 Dec 8 18:31 cluster-loadbalancing/
drwxr-xr-x 3 root root 4096 Dec 8 18:31 device-plugins/
drwxr-xr-x 5 root root 4096 Dec 8 18:31 dns/
drwxr-xr-x 2 root root 4096 Dec 8 18:31 dns-horizontal-autoscaler/
drwxr-xr-x 4 root root 4096 Dec 8 18:31 fluentd-gcp/
drwxr-xr-x 3 root root 4096 Dec 8 18:31 ip-masq-agent/
drwxr-xr-x 2 root root 4096 Dec 8 18:31 kube-proxy/
drwxr-xr-x 3 root root 4096 Dec 8 18:31 metadata-agent/
drwxr-xr-x 3 root root 4096 Dec 8 18:31 metadata-proxy/
drwxr-xr-x 2 root root 4096 Dec 8 18:31 metrics-server/
drwxr-xr-x 5 root root 4096 Dec 8 18:31 node-problem-detector/
-rw-r--r-- 1 root root 104 Dec 8 18:31 OWNERS
drwxr-xr-x 8 root root 4096 Dec 8 18:31 rbac/
-rw-r--r-- 1 root root 1655 Dec 8 18:31 README.md
drwxr-xr-x 8 root root 4096 Dec 8 18:31 storage-class/
drwxr-xr-x 4 root root 4096 Dec 8 18:31 volumesnapshots/
root@master01:/usr/local/src/kubernetes/cluster/addons/dns/coredns# ll
total 44
drwxr-xr-x 2 root root 4096 Dec 8 18:31 ./
drwxr-xr-x 5 root root 4096 Dec 8 18:31 ../
-rw-r--r-- 1 root root 5060 Dec 8 18:31 coredns.yaml.base
-rw-r--r-- 1 root root 5110 Dec 8 18:31 coredns.yaml.in
-rw-r--r-- 1 root root 5112 Dec 8 18:31 coredns.yaml.sed
-rw-r--r-- 1 root root 1075 Dec 8 18:31 Makefile
-rw-r--r-- 1 root root 344 Dec 8 18:31 transforms2salt.sed
-rw-r--r-- 1 root root 287 Dec 8 18:31 transforms2sed.sed
cp coredns.yaml.base /root/
mv /root/coredns.yaml.base /root/coredns-ceamg.yaml
vim /root/coredns-ceamg.yaml
10.2 修改配置文件
主要配置参数：
error: #错误⽇志输出到stdout。
health： #CoreDNS的运⾏状况报告为http://localhost:8080/health.
cache： #启⽤coredns缓存。
reload：#配置⾃动重新加载配置⽂件，如果修改了ConfigMap的配置，会在两分钟后⽣效.
loadbalance：#⼀个域名有多个记录会被轮询解析。
cache 30 #缓存时间
kubernetes：#CoreDNS将根据指定的service domain名称在Kubernetes SVC中进⾏域名解析。
forward： #不是Kubernetes集群域内的域名查询都进⾏转发指定的服务器（/etc/resolv.conf）
prometheus：#CoreDNS的指标数据可以配置Prometheus 访问http://coredns svc:9153/metrics 进⾏收集。
ready：#当coredns 服务启动完成后会进⾏在状态监测，会有个URL 路径为/ready返回200状态码，否则返回报错。
kubernetes __DNS__DOMAIN_是 clusters/k8s-01/hosts 中填写的内容CLUSTER_DNS_DOMAIN
# Cluster DNS Domain
CLUSTER_DNS_DOMAIN="ceamg.local"
212 clusterIP: __DNS__SERVER__是clusters/k8s-01/hosts 中填写的内容SERVICE_CIDR 第二个IP 也就是 10.10.0.2
# K8S Service CIDR, not overlap with node(host) networking
SERVICE_CIDR="10.10.0.0/16
/ # cat /etc/resolv.conf
search default.svc.ceamg.local svc.ceamg.local ceamg.local
nameserver 10.10.0.2
修改如下行内容：
77 kubernetes ceamg.local in-addr.arpa ip6.arpa {
83 forward . 192.168.0.15 {
142 image: harbor.ceamg.com/baseimages/coredns:v1.8.6
145 limits:
146 memory: 2048Mi
147 requests:
148 cpu: 1000m
149 memory: 1024Mi
212 clusterIP: 10.10.0.2
209 spec:
210 type: NodePort
211 selector:
212 k8s-app: kube-dns
213 clusterIP: 10.10.0.2
214 ports:
215 - name: dns
216 port: 53
217 protocol: UDP
218 - name: dns-tcp
219 port: 53
220 protocol: TCP
221 - name: metrics
222 port: 9153
223 protocol: TCP
224 targetPort: 9153
225 nodePort: 30009
查看资源格式： kubectl explain
10.3 下载镜像并推送到harbor
root@master01:/usr/local/src/kubernetes/cluster/addons/dns/coredns# nerdctl pull registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:v1.8.6
root@master01:/usr/local/src/kubernetes/cluster/addons/dns/coredns# nerdctl tag registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:v1.8.6 harbor.ceamg.com/baseimages/coredns:v1.8.6
root@master01:/usr/local/src/kubernetes/cluster/addons/dns/coredns# nerdctl push harbor.ceamg.com/baseimages/coredns:v1.8.6
INFO[0000] pushing as a reduced-platform image (application/vnd.docker.distribution.manifest.list.v2+json, sha256:53011ff05d62cd740ae785a98f646ace63374073b0e564a35d4cea008f040940)
10.4 安装coredns
root@master01:/usr/local/src/kubernetes/cluster/addons/dns/coredns# kubectl apply -f /root/coredns-ceamg.yaml
serviceaccount/coredns created
clusterrole.rbac.authorization.k8s.io/system:coredns created
clusterrolebinding.rbac.authorization.k8s.io/system:coredns created
configmap/coredns created
deployment.apps/coredns created
service/kube-dns created
root@master01:~# kubectl get pod -A
NAMESPACE NAME READY STATUS RESTARTS AGE
default net-test1 1/1 Running 0 25m
default net-test2 1/1 Running 0 25m
default net-test3 1/1 Running 0 25m
default net-test4 1/1 Running 0 49m
kube-system calico-kube-controllers-5c8bb696bb-hf2cp 1/1 Running 1 (57m ago) 151m
kube-system calico-node-6nlt6 1/1 Running 0 151m
kube-system calico-node-fd6rj 1/1 Running 0 151m
kube-system calico-node-lhgh4 1/1 Running 0 151m
kube-system coredns-6c496b89f6-hd8vf 1/1 Running 0 3s
10.5 启动容器测试域名解析
root@master01:~# kubectl exec -it net-test1
error: you must specify at least one command for the container
root@master01:~# kubectl exec -it net-test1 -- sh
/ #
/ # ping www.baidu.com
PING www.baidu.com (110.242.68.3): 56 data bytes
64 bytes from 110.242.68.3: seq=0 ttl=49 time=9.778 ms
--- www.baidu.com ping statistics ---
1 packets transmitted, 1 packets received, 0% packet loss
round-trip min/avg/max = 9.778/9.778/9.778 ms
/ #
/ # cat /etc/resolv.conf
search default.svc.ceamg.local svc.ceamg.local ceamg.local
nameserver 10.10.0.2
options ndots:5

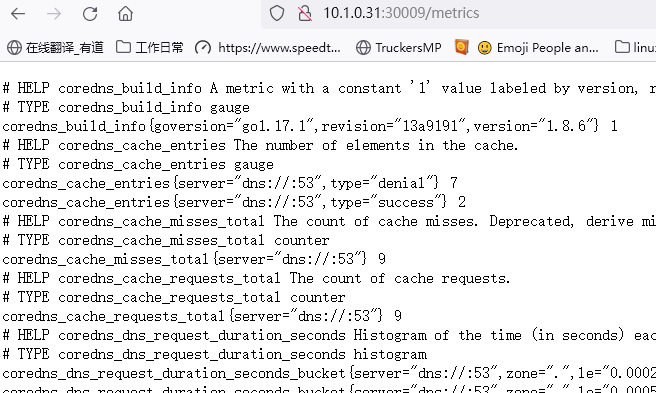

10.6 测试 prometheus 监控项
http://10.1.0.31:30009/metrics

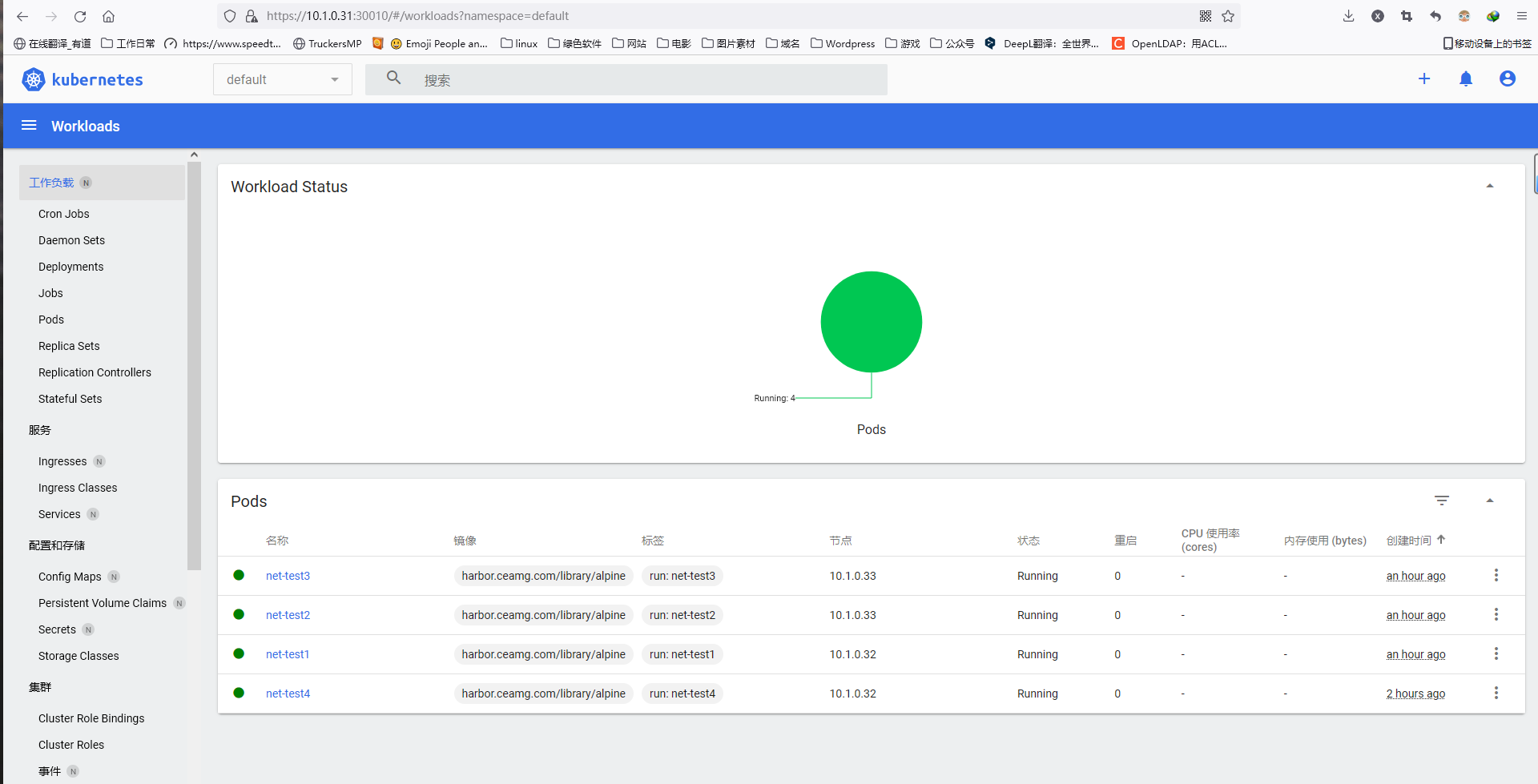

11. 步骤8-安装集群插件-dashboard
https://github.com/kubernetes/dashboard

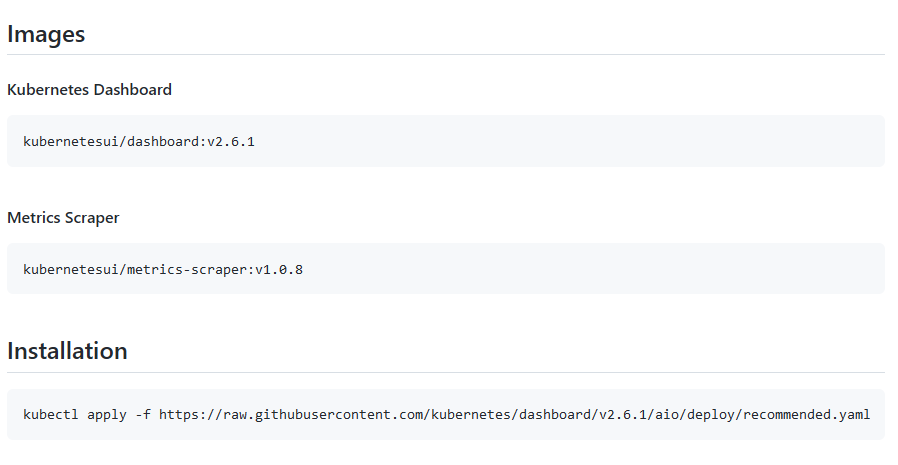

11.1 下载对应kubernetes版本的dashboard
Compatibility
| Kubernetes version | 1.21 | 1.22 | 1.23 | 1.24 |
|---|---|---|---|---|
| Compatibility | ? | ? | ? | ✓ |
- ✓ Fully supported version range.
- ? Due to breaking changes between Kubernetes API versions, some features might not work correctly in the Dashboard.
# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
apiVersion: v1
kind: Namespace
metadata:
name: kubernetes-dashboard
---
apiVersion: v1
kind: ServiceAccount
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
---
kind: Service
apiVersion: v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
spec:
ports:
- port: 443
targetPort: 8443
selector:
k8s-app: kubernetes-dashboard
---
apiVersion: v1
kind: Secret
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-certs
namespace: kubernetes-dashboard
type: Opaque
---
apiVersion: v1
kind: Secret
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-csrf
namespace: kubernetes-dashboard
type: Opaque
data:
csrf: ""
---
apiVersion: v1
kind: Secret
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-key-holder
namespace: kubernetes-dashboard
type: Opaque
---
kind: ConfigMap
apiVersion: v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-settings
namespace: kubernetes-dashboard
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
rules:
# Allow Dashboard to get, update and delete Dashboard exclusive secrets.
- apiGroups: [""]
resources: ["secrets"]
resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
verbs: ["get", "update", "delete"]
# Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
- apiGroups: [""]
resources: ["configmaps"]
resourceNames: ["kubernetes-dashboard-settings"]
verbs: ["get", "update"]
# Allow Dashboard to get metrics.
- apiGroups: [""]
resources: ["services"]
resourceNames: ["heapster", "dashboard-metrics-scraper"]
verbs: ["proxy"]
- apiGroups: [""]
resources: ["services/proxy"]
resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
verbs: ["get"]
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
rules:
# Allow Metrics Scraper to get metrics from the Metrics server
- apiGroups: ["metrics.k8s.io"]
resources: ["pods", "nodes"]
verbs: ["get", "list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: kubernetes-dashboard
subjects:
- kind: ServiceAccount
name: kubernetes-dashboard
namespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: kubernetes-dashboard
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: kubernetes-dashboard
subjects:
- kind: ServiceAccount
name: kubernetes-dashboard
namespace: kubernetes-dashboard
---
kind: Deployment
apiVersion: apps/v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
spec:
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
k8s-app: kubernetes-dashboard
template:
metadata:
labels:
k8s-app: kubernetes-dashboard
spec:
securityContext:
seccompProfile:
type: RuntimeDefault
containers:
- name: kubernetes-dashboard
image: kubernetesui/dashboard:v2.6.1
imagePullPolicy: Always
ports:
- containerPort: 8443
protocol: TCP
args:
- --auto-generate-certificates
- --namespace=kubernetes-dashboard
# Uncomment the following line to manually specify Kubernetes API server Host
# If not specified, Dashboard will attempt to auto discover the API server and connect
# to it. Uncomment only if the default does not work.
# - --apiserver-host=http://my-address:port
volumeMounts:
- name: kubernetes-dashboard-certs
mountPath: /certs
# Create on-disk volume to store exec logs
- mountPath: /tmp
name: tmp-volume
livenessProbe:
httpGet:
scheme: HTTPS
path: /
port: 8443
initialDelaySeconds: 30
timeoutSeconds: 30
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
runAsUser: 1001
runAsGroup: 2001
volumes:
- name: kubernetes-dashboard-certs
secret:
secretName: kubernetes-dashboard-certs
- name: tmp-volume
emptyDir: {}
serviceAccountName: kubernetes-dashboard
nodeSelector:
"kubernetes.io/os": linux
# Comment the following tolerations if Dashboard must not be deployed on master
tolerations:
- key: node-role.kubernetes.io/master
effect: NoSchedule
---
kind: Service
apiVersion: v1
metadata:
labels:
k8s-app: dashboard-metrics-scraper
name: dashboard-metrics-scraper
namespace: kubernetes-dashboard
spec:
ports:
- port: 8000
targetPort: 8000
selector:
k8s-app: dashboard-metrics-scraper
---
kind: Deployment
apiVersion: apps/v1
metadata:
labels:
k8s-app: dashboard-metrics-scraper
name: dashboard-metrics-scraper
namespace: kubernetes-dashboard
spec:
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
k8s-app: dashboard-metrics-scraper
template:
metadata:
labels:
k8s-app: dashboard-metrics-scraper
spec:
securityContext:
seccompProfile:
type: RuntimeDefault
containers:
- name: dashboard-metrics-scraper
image: kubernetesui/metrics-scraper:v1.0.8
ports:
- containerPort: 8000
protocol: TCP
livenessProbe:
httpGet:
scheme: HTTP
path: /
port: 8000
initialDelaySeconds: 30
timeoutSeconds: 30
volumeMounts:
- mountPath: /tmp
name: tmp-volume
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
runAsUser: 1001
runAsGroup: 2001
serviceAccountName: kubernetes-dashboard
nodeSelector:
"kubernetes.io/os": linux
# Comment the following tolerations if Dashboard must not be deployed on master
tolerations:
- key: node-role.kubernetes.io/master
effect: NoSchedule
volumes:
- name: tmp-volume
emptyDir: {}
11.2 修改service暴露方式
32 kind: Service
33 apiVersion: v1
34 metadata:
35 labels:
36 k8s-app: kubernetes-dashboard
37 name: kubernetes-dashboard
38 namespace: kubernetes-dashboard
39 spec:
40 type: NodePort
41 ports:
42 - port: 443
43 targetPort: 8443
44 nodePort: 30010
45 selector:
46 k8s-app: kubernetes-dashboard
11.3 下载镜像推送到harbor
root@master01:~# cat k8s-dashboard-ceamg.yml | grep image
image: kubernetesui/dashboard:v2.6.1
imagePullPolicy: Always
image: kubernetesui/metrics-scraper:v1.0.8
root@master01:~#nerdctl pull kubernetesui/dashboard:v2.6.1
root@master01:~# nerdctl pull kubernetesui/metrics-scraper:v1.0.8
root@master01:~# nerdctl tag kubernetesui/dashboard:v2.6.1 harbor.ceamg.com/baseimages/dashboard:v2.6.1
root@master01:~# nerdctl push harbor.ceamg.com/baseimages/dashboard:v2.6.1
INFO[0000] pushing as a reduced-platform image (application/vnd.docker.distribution.manifest.list.v2+json, sha256:f12df071f8bad3e1965b5246095bd3f78df0eb76ceabcc0878d42849d33e4a10)
index-sha256:f12df071f8bad3e1965b5246095bd3f78df0eb76ceabcc0878d42849d33e4a10: done |++++++++++++++++++++++++++++++++++++++|
manifest-sha256:d95e1adbe846450bf9451f9c95ab33865115909cf3962960af5983bb916cf320: done |++++++++++++++++++++++++++++++++++++++|
config-sha256:783e2b6d87ed93a9f9fee34e84c2b029b7a9572b2f41f761437e58af9c26827f: done |++++++++++++++++++++++++++++++++++++++|
elapsed: 3.2 s total: 2.5 Ki (814.0 B/s)
root@master01:~#
root@master01:~# nerdctl tag kubernetesui/metrics-scraper:v1.0.8 harbor.ceamg.com/baseimages/metrics-scraper:v1.0.8
root@master01:~# nerdctl push harbor.ceamg.com/baseimages/metrics-scraper:v1.0.8
INFO[0000] pushing as a reduced-platform image (application/vnd.docker.distribution.manifest.list.v2+json, sha256:9fdef455b4f9a8ee315a0aa3bd71787cfd929e759da3b4d7e65aaa56510d747b)
index-sha256:9fdef455b4f9a8ee315a0aa3bd71787cfd929e759da3b4d7e65aaa56510d747b: done |++++++++++++++++++++++++++++++++++++++|
manifest-sha256:43227e8286fd379ee0415a5e2156a9439c4056807e3caa38e1dd413b0644807a: done |++++++++++++++++++++++++++++++++++++++|
config-sha256:115053965e86b2df4d78af78d7951b8644839d20a03820c6df59a261103315f7: done |++++++++++++++++++++++++++++++++++++++|
elapsed: 0.8 s total: 2.2 Ki (2.7 KiB/s)
11.4 修改镜像地址
195 image: harbor.ceamg.com/baseimages/dashboard:v2.6.1
280 image: harbor.ceamg.com/baseimages/metrics-scraper:v1.0.8
11.5 安装dashboard组件
kubectl apply -f k8s-dashboard-ceamg.yml
11.6 查看组件运行状态
root@master01:~# kubectl get pod -A
NAMESPACE NAME READY STATUS RESTARTS AGE
default net-test1 1/1 Running 0 99m
default net-test2 1/1 Running 0 99m
default net-test3 1/1 Running 0 99m
default net-test4 1/1 Running 0 123m
kube-system calico-kube-controllers-5c8bb696bb-hf2cp 1/1 Running 1 (131m ago) 3h45m
kube-system calico-node-6nlt6 1/1 Running 0 3h45m
kube-system calico-node-fd6rj 1/1 Running 0 3h45m
kube-system calico-node-lhgh4 1/1 Running 0 3h45m
kube-system coredns-6c496b89f6-hd8vf 1/1 Running 0 73m
kubernetes-dashboard dashboard-metrics-scraper-8b9c56ffb-tjjc4 1/1 Running 0 14s
kubernetes-dashboard kubernetes-dashboard-6f9f585c48-vv2pz 1/1 Running 0 14s
11.7 获取登陆 token
apiVersion: v1
kind: ServiceAccount
metadata:
name: admin-user
namespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: admin-user
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: admin-user
namespace: kubernetes-dashboard
root@master01:~# kubectl apply -f admin-user.yml
serviceaccount/admin-user created
clusterrolebinding.rbac.authorization.k8s.io/admin-user created
注意
注意：v1.24.0 更新之后进行创建 ServiceAccount 不会自动生成 Secret 需要对其手动创建
# 创建token
root@master01:~# kubectl -n kubernetes-dashboard create token admin-user --duration 604800s
eyJhbGciOiJSUzI1NiIsImtpZCI6ImptTldRRDRZZVVSdXRhaU1RNUtyQmJUSmVTbW55VThqNHhLU1l6U3B4R28ifQ.eyJhdWQiOlsiYXBpIiwiaXN0aW8tY2EiXSwiZXhwIjoxNjczNDI1MDI3LCJpYXQiOjE2NzI4MjAyMjcsImlzcyI6Imh0dHBzOi8va3ViZXJuZXRlcy5kZWZhdWx0LnN2YyIsImt1YmVybmV0ZXMuaW8iOnsibmFtZXNwYWNlIjoia3ViZXJuZXRlcy1kYXNoYm9hcmQiLCJzZXJ2aWNlYWNjb3VudCI6eyJuYW1lIjoiYWRtaW4tdXNlciIsInVpZCI6IjdhNTAzN2E4LTQ2MGEtNGM3YS05NWQ5LTNjM2JkNGQ0YTUyZSJ9fSwibmJmIjoxNjcyODIwMjI3LCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.ciX6c6hUe8NqPHWp7GteAecZ75L50sKL0l0jk6hETJM9xUVkE-knhm-wQWogOCq1vJMWtg_qeYqsyxfFAMbXdnGgXUXH3tuLVe0NcSHfGVa0BBfjUqODODoAcKdEWJJqdTO_QCfzHTTGkBDZoPgqjALBFzMVh_anlUdeSehRtTh6y2L0dsMRbWuEp1YI8phXumRGIbsrRDOenCycfyPh2AUEChMhD_uYS85z2tDVbno-1y4sSoSiPPn-awUEAxo-ly7zIOUz_b6ZiMhM6nGTuJ-7Jyxq4A8f2pj-iyXA_ve3g1Y4AaInd1aaZhCQ_82rOpmHP0Idyzg_lqEneltBaw
方式二
手动创建secrit
root@master01:/zookeeper# kubectl apply -f secrit
secret/admin-user created
apiVersion: v1
kind: Secret
type: kubernetes.io/service-account-token
metadata:
name: admin-user
namespace: kubernetes-dashboard
annotations:
kubernetes.io/service-account.name: "admin-user"
root@master01:/zookeeper# kubectl -n kubernetes-dashboard describe sa admin-user
Name: admin-user
Namespace: kubernetes-dashboard
Labels: <none>
Annotations: <none>
Image pull secrets: <none>
Mountable secrets: <none>
Tokens: admin-user
Events: <none>
root@master01:/zookeeper# kubectl -n kubernetes-dashboard describe secrets admin-user
Name: admin-user
Namespace: kubernetes-dashboard
Labels: <none>
Annotations: kubernetes.io/service-account.name: admin-user
kubernetes.io/service-account.uid: 7a5037a8-460a-4c7a-95d9-3c3bd4d4a52e
Type: kubernetes.io/service-account-token
Data
====
namespace: 20 bytes
token: eyJhbGciOiJSUzI1NiIsImtpZCI6ImptTldRRDRZZVVSdXRhaU1RNUtyQmJUSmVTbW55VThqNHhLU1l6U3B4R28ifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI3YTUwMzdhOC00NjBhLTRjN2EtOTVkOS0zYzNiZDRkNGE1MmUiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.YIZ1UepKs7WzebxKMOVIPkmz0KLkIyV59S7D0x4sBpefqseX6lSfV_YbhDjQv0dm6ne9HJ85dHzF1-qmSJEO_EW3m-aNOfmem7jkqr8XDUIgHceeKZimauTodKvApsWWD_Flsk7r2nin-MoNkOJ5mi6g5Pu3iQuKhQINl3G9Wwch5c-5FV0l-RBWR1rw9rVby6fh1jfkAhMWGL7lWKJeAA6fE2dTJVSJ-ZhW_bzwPTTDKNhIlpRsyKEnFXwWmK9Jqoxq8y5H0iJIhbvkYCxwUG2Gjjfi6jIWhJvWo20_kTq5Cy-7BNXafBI5D6VKmFwHFyOLBQcvkntN2IpVRNcfbA
ca.crt: 1302 bytes
https://blog.csdn.net/qq_41619571/article/details/127217339
11.8 登录测试
12. 集群管理
集群管理主要是添加master、添加node、删除master与删除node等节点管理及监控
12.1 添加node节点
./ezctl add-node k8s-01 10.1.0.39
12.2 添加master 节点
root@master01:/etc/kubeasz# ./ezctl add-master k8s-01 10.1.0.30
master 节点添加后会向 node节点 /etc/kube-lb/conf/kube-lb.conf 中添加反向代理节点
user root;
worker_processes 1;
error_log /etc/kube-lb/logs/error.log warn;
events {
worker_connections 3000;
}
stream {
upstream backend {
server 10.1.0.30:6443 max_fails=2 fail_timeout=3s;
server 10.1.0.31:6443 max_fails=2 fail_timeout=3s;
}
server {
listen 127.0.0.1:6443;
proxy_connect_timeout 1s;
proxy_pass backend;
}
}
12.3 验证当前节点
root@master02:~# kubectl get nodes
NAME STATUS ROLES AGE VERSION
10.1.0.30 Ready,SchedulingDisabled master 15m v1.24.2
10.1.0.31 Ready,SchedulingDisabled master 44h v1.24.2
10.1.0.32 Ready node 44h v1.24.2
10.1.0.33 Ready node 44h v1.24.2
root@master02:~# calicoctl node status
Calico process is running.
IPv4 BGP status
+--------------+-------------------+-------+----------+-------------+
| PEER ADDRESS | PEER TYPE | STATE | SINCE | INFO |
+--------------+-------------------+-------+----------+-------------+
| 10.1.0.31 | node-to-node mesh | up | 02:47:43 | Established |
| 10.1.0.32 | node-to-node mesh | up | 02:47:12 | Established |
| 10.1.0.33 | node-to-node mesh | up | 02:47:31 | Established |
+--------------+-------------------+-------+----------+-------------+
IPv6 BGP status
No IPv6 peers found.
13. 集群升级
先升级master 保证集群中至少有一个master节点可用 ，在node节点nginx反向代理中注释掉要升级的master节点。
13.1 升级master节点
在各个node节点反向代理配置中注释掉要升级的master节点
vim /etc/kube-lb/conf/kube-lb.conf
user root;
worker_processes 1;
error_log /etc/kube-lb/logs/error.log warn;
events {
worker_connections 3000;
}
stream {
upstream backend {
#server 10.1.0.30:6443 max_fails=2 fail_timeout=3s;
server 10.1.0.31:6443 max_fails=2 fail_timeout=3s;
}
server {
listen 127.0.0.1:6443;
proxy_connect_timeout 1s;
proxy_pass backend;
}
}
#重启服务
root@worker01:~# systemctl restart kube-lb.service
node节点升级需要停服务，需要关闭kubelet 和 kube-proxy服务替换二进制文件
- kube-apiserver
- kube-controller-manager
- kubectl
- kubelet
- kube-proxy
- kube-scheduler
去github找到想要升级的版本下载二进制文件：
https://github.com/kubernetes/kubernetes/releases
root@master01:/usr/local/src# ll
total 489744
drwxr-xr-x 3 root root 4096 Jan 4 13:11 ./
drwxr-xr-x 13 root root 4096 Jan 1 13:20 ../
drwxr-xr-x 10 root root 4096 Dec 8 18:31 kubernetes/
-rw-r--r-- 1 root root 30495559 Jan 4 13:09 kubernetes-client-linux-amd64.tar.gz
-rw-r--r-- 1 root root 123361203 Jan 4 13:09 kubernetes-node-linux-amd64.tar.gz
-rw-r--r-- 1 root root 347075448 Jan 4 13:09 kubernetes-server-linux-amd64.tar.gz
-rw-r--r-- 1 root root 532769 Jan 4 13:09 kubernetes.tar.gz
二进制文件在/server/bin目录下面
root@master01:/usr/local/src/kubernetes/server/bin# ll -ls
total 1090008
4 drwxr-xr-x 2 root root 4096 Dec 8 18:26 ./
4 drwxr-xr-x 3 root root 4096 Dec 8 18:31 ../
54176 -rwxr-xr-x 1 root root 55476224 Dec 8 18:26 apiextensions-apiserver*
43380 -rwxr-xr-x 1 root root 44421120 Dec 8 18:26 kubeadm*
48408 -rwxr-xr-x 1 root root 49569792 Dec 8 18:26 kube-aggregator*
123032 -rwxr-xr-x 1 root root 125980672 Dec 8 18:26 kube-apiserver*
4 -rw-r--r-- 1 root root 8 Dec 8 18:25 kube-apiserver.docker_tag
128092 -rw------- 1 root root 131165184 Dec 8 18:25 kube-apiserver.tar
112896 -rwxr-xr-x 1 root root 115605504 Dec 8 18:26 kube-controller-manager*
4 -rw-r--r-- 1 root root 8 Dec 8 18:25 kube-controller-manager.docker_tag
117960 -rw------- 1 root root 120790016 Dec 8 18:25 kube-controller-manager.tar
44680 -rwxr-xr-x 1 root root 45752320 Dec 8 18:26 kubectl*
53796 -rwxr-xr-x 1 root root 55085992 Dec 8 18:26 kubectl-convert*
113376 -rwxr-xr-x 1 root root 116095704 Dec 8 18:26 kubelet*
1452 -rwxr-xr-x 1 root root 1486848 Dec 8 18:26 kube-log-runner*
40820 -rwxr-xr-x 1 root root 41799680 Dec 8 18:26 kube-proxy*
4 -rw-r--r-- 1 root root 8 Dec 8 18:25 kube-proxy.docker_tag
109280 -rw------- 1 root root 111901184 Dec 8 18:25 kube-proxy.tar
46096 -rwxr-xr-x 1 root root 47202304 Dec 8 18:26 kube-scheduler*
4 -rw-r--r-- 1 root root 8 Dec 8 18:25 kube-scheduler.docker_tag
51160 -rw------- 1 root root 52386816 Dec 8 18:25 kube-scheduler.tar
1380 -rwxr-xr-x 1 root root 1413120 Dec 8 18:26 mounter*
root@master01:/usr/local/src/kubernetes/server/bin# ./kube-apiserver --version
Kubernetes v1.24.9
#当前版本
root@master01:/usr/local/src/kubernetes/server/bin# /etc/kubeasz/bin/kube-apiserver --version
Kubernetes v1.24.2
停止服务
systemctl stop kube-proxy kube-controller-manager kubelet kube-scheduler kube-apiserver
替换二进制文件
root@master01:/usr/local/src/kubernetes/server/bin# scp kube-apiserver kube-controller-manager kubelet kube-scheduler kube-proxy 10.1.0.30:/usr/local/bin
kube-apiserver 100% 120MB 129.5MB/s 00:00
kube-controller-manager 100% 110MB 128.8MB/s 00:00
kubelet 100% 111MB 137.1MB/s 00:00
kube-scheduler 100% 45MB 128.5MB/s 00:00
kube-proxy 100% 40MB 132.0MB/s 00:00
启动服务
systemctl start kube-proxy kube-controller-manager kubelet kube-scheduler kube-apiserver
验证版本
root@master02:~# kubectl get nodes
NAME STATUS ROLES AGE VERSION
10.1.0.30 Ready,SchedulingDisabled master 136m v1.24.9
10.1.0.31 Ready,SchedulingDisabled master 46h v1.24.2
10.1.0.32 Ready node 46h v1.24.2
10.1.0.33 Ready node 46h v1.24.2
在另外的master节点上重复以上操作
root@master01:/usr/local/src/kubernetes/server/bin# systemctl stop kube-proxy kube-controller-manager kubelet kube-scheduler kube-apiserver
root@master01:/usr/local/src/kubernetes/server/bin# \cp kube-apiserver kube-controller-manager kubelet kube-scheduler kube-proxy /usr/local/bin
root@master01:/usr/local/src/kubernetes/server/bin# kubectl get nodes
NAME STATUS ROLES AGE VERSION
10.1.0.30 Ready,SchedulingDisabled master 142m v1.24.9
10.1.0.31 Ready,SchedulingDisabled master 47h v1.24.9
10.1.0.32 Ready node 46h v1.24.2
10.1.0.33 Ready node 46h v1.24.2
各node节点kube-lb取消upstream注释
13.2 升级node节点
node节点只需要替换kubelet 和 kube-proxy 两个
关闭服务
root@worker01:~# systemctl stop kubelet.service kube-proxy.service
替换二进制文件
root@master01:/usr/local/src/kubernetes/server/bin# scp kubelet kube-proxy 10.1.0.32:/usr/local/bin
kubelet 100% 111MB 134.8MB/s 00:00
kube-proxy 100% 40MB 139.3MB/s 00:00
root@master01:/usr/local/src/kubernetes/server/bin# scp kubelet kube-proxy 10.1.0.33:/usr/local/bin
启动服务
root@worker01:~# systemctl start kubelet.service kube-proxy.service
验证版本
root@master02:~# kubectl get nodes
NAME STATUS ROLES AGE VERSION
10.1.0.30 Ready,SchedulingDisabled master 157m v1.24.9
10.1.0.31 Ready,SchedulingDisabled master 47h v1.24.9
10.1.0.32 Ready node 46h v1.24.9
10.1.0.33 Ready node 46h v1.24.9
