5.k8s实战案例-nginx与tomcat实现动静分离
自定义镜像-运行nginx与tomcat实现动静分离

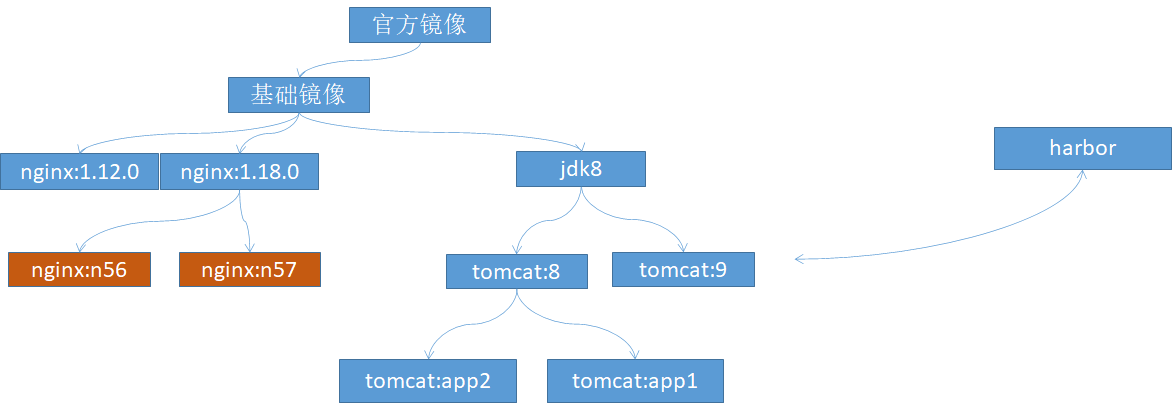

1. 系统基础镜像
harbor.ceamg.com/baseimages/centos:7.8.2003
2. 构建 nginx 基础镜像
root@harbor01:/dockerfile/web/pub-images# pwd
/dockerfile/web/pub-images
root@harbor01:/dockerfile/web/pub-images# tree
.
├── build-command.sh
├── Dockerfile
└── nginx-1.22.1.tar.gz
0 directories, 3 files
#!/bin/bash
TAG=$1
docker build -t harbor.ceamg.com/pub-images/nginx-base:${TAG} .
sleep 1
docker push harbor.ceamg.com/pub-images/nginx-base:${TAG}
#Nginx 1.22.1
FROM harbor.ceamg.com/pub-images/nginx-base:1.22.1
ADD nginx.conf /usr/local/nginx/conf/nginx.conf
ADD app1.tar.gz /usr/local/nginx/html/webapp/
ADD index.html /usr/local/nginx/html/index.html
#静态资源挂载路径
RUN mkdir -p /usr/local/nginx/html/webapp/static /usr/local/nginx/html/webapp/images && useradd nginx -u 2023 -s /sbin/nologin -M
EXPOSE 80 443
CMD ["nginx"]
3. 构建 nginx 业务镜像
root@harbor01:/dockerfile/web/xin-01/nginx# pwd
/dockerfile/web/xin-01/nginx
root@harbor01:/dockerfile/web/xin-01/nginx# tree
.
├── app1.tar.gz
├── bulid-command.sh
├── Dockerfile
├── index.html
└── nginx.conf
#!/bin/bash
TAG=$1
docker build -t harbor.ceamg.com/xinweb11/nginx-web1:${TAG} .
sleep 1
docker push harbor.ceamg.com/xinweb11/nginx-web1:${TAG}
xxx in xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxx /usr/local/nginx/html/index.html xx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
user nginx nginx;
worker_processes auto;
#error_log logs/error.log;
#error_log logs/error.log notice;
#error_log logs/error.log info;
#pid logs/nginx.pid;
daemon off;
events {
worker_connections 1024;
}
http {
include mime.types;
default_type application/octet-stream;
#log_format main '$remote_addr - $remote_user [$time_local] "$request" '
# '$status $body_bytes_sent "$http_referer" '
# '"$http_user_agent" "$http_x_forwarded_for"';
#access_log logs/access.log main;
sendfile on;
#tcp_nopush on;
#keepalive_timeout 0;
keepalive_timeout 65;
#gzip on;
upstream tomcat_webserver {
server magedu-tomcat-app1-service.magedu.svc.magedu.local:80;
}
server {
listen 80;
server_name localhost;
#charset koi8-r;
#access_log logs/host.access.log main;
location / {
root html;
index index.html index.htm;
}
location /webapp {
root html;
index index.html index.htm;
}
location /myapp {
proxy_pass http://tomcat_webserver;
proxy_set_header Host $host;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Real-IP $remote_addr;
}
#error_page 404 /404.html;
# redirect server error pages to the static page /50x.html
#
error_page 500 502 503 504 /50x.html;
location = /50x.html {
root html;
}
# proxy the PHP scripts to Apache listening on 127.0.0.1:80
#
#location ~ \.php$ {
# proxy_pass http://127.0.0.1;
#}
# pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
#
#location ~ \.php$ {
# root html;
# fastcgi_pass 127.0.0.1:9000;
# fastcgi_index index.php;
# fastcgi_param SCRIPT_FILENAME /scripts$fastcgi_script_name;
# include fastcgi_params;
#}
# deny access to .htaccess files, if Apache's document root
# concurs with nginx's one
#
#location ~ /\.ht {
# deny all;
#}
}
# another virtual host using mix of IP-, name-, and port-based configuration
#
#server {
# listen 8000;
# listen somename:8080;
# server_name somename alias another.alias;
# location / {
# root html;
# index index.html index.htm;
# }
#}
# HTTPS server
#
#server {
# listen 443 ssl;
# server_name localhost;
# ssl_certificate cert.pem;
# ssl_certificate_key cert.key;
# ssl_session_cache shared:SSL:1m;
# ssl_session_timeout 5m;
# ssl_ciphers HIGH:!aNULL:!MD5;
# ssl_prefer_server_ciphers on;
# location / {
# root html;
# index index.html index.htm;
# }
#}
}
#Nginx 1.22.1
FROM harbor.ceamg.com/pub-images/nginx-base:1.22.1
ADD nginx.conf /usr/local/nginx/conf/nginx.conf
ADD app1.tar.gz /usr/local/nginx/html/webapp/
ADD index.html /usr/local/nginx/html/index.html
#静态资源挂载路径
RUN mkdir -p /usr/local/nginx/html/webapp/static /usr/local/nginx/html/webapp/images
EXPOSE 80 443
CMD ["nginx"]
测试nginx业务镜像
root@harbor01:/dockerfile/web/xin-01/nginx# docker run -it --rm -p 8888:80 harbor.ceamg.com/xinweb11/nginx-web1:v1.6
curl http://10.1.0.38:8888
curl http://10.1.0.38:8888/webapp/
4. ubuntu基础镜像
docker pull ubuntu:20.04
docker tag docker.io/library/ubuntu:20.04 harbor.ceamg.com/baseimages/ubuntu:20.04
docker push harbor.ceamg.com/baseimages/ubuntu:20.04
5. 构建jdk8
root@harbor01:/dockerfile/web/pub-images/jdk# pwd
/dockerfile/web/pub-images/jdk
root@harbor01:/dockerfile/web/pub-images/jdk# tree
.
├── build-command.sh
├── Dockerfile
├── jdk-8u212-linux-x64.tar.gz
├── jdk-8u341-linux-x64.tar.gz
└── profile
#JDK Base Image
FROM harbor.ceamg.com/baseimages/ubuntu:20.04
MAINTAINER Ryan "ryanxin.com"
ADD jdk-8u341-linux-x64.tar.gz /usr/local/src/
RUN ln -sv /usr/local/src/jdk1.8.0_341 /usr/local/jdk
ADD profile /etc/profile
ENV JAVA_HOME /usr/local/jdk
ENV JRE_HOME $JAVA_HOME/jre
ENV CLASSPATH $JAVA_HOME/lib/:$JRE_HOME/lib/
ENV PATH $PATH:$JAVA_HOME/bin
#!/bin/bash
TAG=$1
docker build -t harbor.ceamg.com/pub-images/jdk8:${TAG} .
sleep 3
docker push harbor.ceamg.com/pub-images/jdk8:${TAG}
# /etc/profile: system-wide .profile file for the Bourne shell (sh(1))
# and Bourne compatible shells (bash(1), ksh(1), ash(1), ...).
if [ "${PS1-}" ]; then
if [ "${BASH-}" ] && [ "$BASH" != "/bin/sh" ]; then
# The file bash.bashrc already sets the default PS1.
# PS1='\h:\w\$ '
if [ -f /etc/bash.bashrc ]; then
. /etc/bash.bashrc
fi
else
if [ "$(id -u)" -eq 0 ]; then
PS1='# '
else
PS1='$ '
fi
fi
fi
if [ -d /etc/profile.d ]; then
for i in /etc/profile.d/*.sh; do
if [ -r $i ]; then
. $i
fi
done
unset i
fi
export LANG=en_US.UTF-8
export HISTTIMEFORMAT="%F %T `whoami` "
export JAVA_HOME=/usr/local/jdk
export JRE_HOME=${JAVA_HOME}/jre
export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib
export PATH=${JAVA_HOME}/bin:$PATH
测试镜像
root@harbor01:/dockerfile/web/pub-images/jdk# docker run -it --rm harbor.ceamg.com/pub-images/jdk8:3411
root@494e5aeb25af:/# java -v
Unrecognized option: -v
Error: Could not create the Java Virtual Machine.
Error: A fatal exception has occurred. Program will exit.
root@494e5aeb25af:/# java -version
java version "1.8.0_341"
Java(TM) SE Runtime Environment (build 1.8.0_341-b10)
Java HotSpot(TM) 64-Bit Server VM (build 25.341-b10, mixed mode)
6. 构建 Tomcat 镜像
root@harbor01:/dockerfile/web/pub-images/tomcat# pwd
/dockerfile/web/pub-images/tomcat
root@harbor01:/dockerfile/web/pub-images/tomcat# tree
.
├── apache-tomcat-8.5.43.tar.gz
├── build-command.sh
└── Dockerfile
#!/bin/bash
docker build -t harbor.ceamg.com/pub-images/tomcat-base:v8.5.43 .
sleep 3
docker push harbor.ceamg.com/pub-images/tomcat-base:v8.5.43
#Tomcat 8.5.43基础镜像
FROM harbor.ceamg.com/pub-images/jdk8:3411
MAINTAINER Ryanxin ryanxin@outlook.com
RUN mkdir /apps /data/tomcat/webapps /data/tomcat/logs -pv
ADD apache-tomcat-8.5.43.tar.gz /apps
RUN useradd nginx -u 2022 && ln -sv /apps/apache-tomcat-8.5.43 /apps/tomcat && chown -R nginx.nginx /apps /data -R
7. 构建Tomcat 业务镜像
root@harbor01:/dockerfile/web/xin-01/tomcat-app1# tree
.
├── app1.tar
├── app1.tar.gz
├── build-command.sh
├── catalina.sh
├── Dockerfile
├── run_tomcat.sh
└── server.xml
#tomcat web1
FROM harbor.ceamg.com/pub-images/tomcat-base:v8.5.43.1
ADD catalina.sh /apps/tomcat/bin/catalina.sh
ADD server.xml /apps/tomcat/conf/server.xml
ADD app1.tar /data/tomcat/webapps/myapp/
ADD run_tomcat.sh /apps/tomcat/bin/run_tomcat.sh
RUN mkdir /home/nginx -p \
&& chmod 755 /home/nginx \
&& cp -a /etc/skel/. /home/nginx \
&& chown -R nginx.nginx /data/ /apps/
EXPOSE 8080 8443
CMD ["/apps/tomcat/bin/run_tomcat.sh"]
#!/bin/bash
#echo "nameserver 223.6.6.6" > /etc/resolv.conf
#echo "192.168.7.248 k8s-vip.example.com" >> /etc/hosts
#/usr/share/filebeat/bin/filebeat -e -c /etc/filebeat/filebeat.yml -path.home /usr/share/filebeat -path.config /etc/filebeat -path.data /var/lib/filebeat -path.logs /var/log/filebeat &
su -c "/apps/tomcat/bin/catalina.sh start" nginx
tail -f /etc/hosts

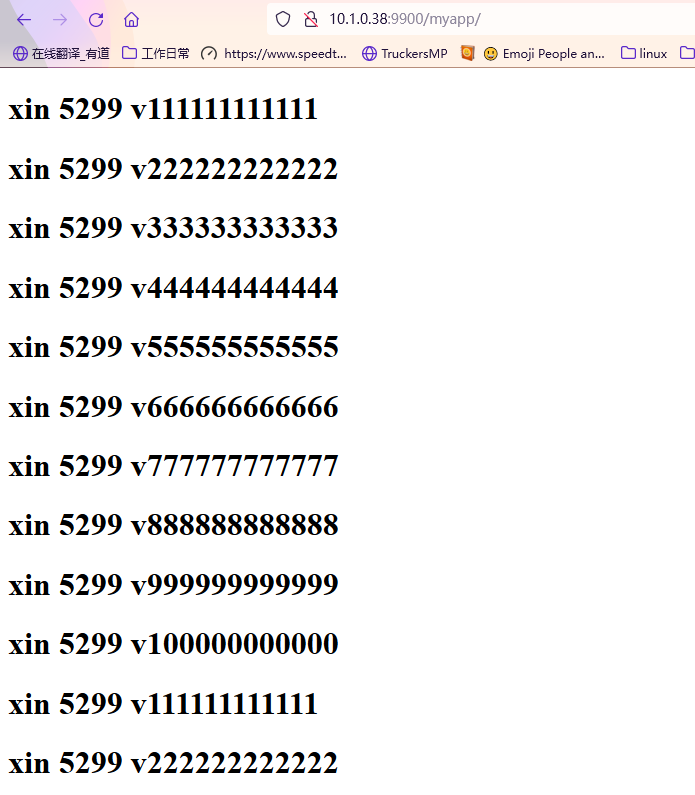

测试镜像
docker run -it --rm -p 9900:8080 harbor.ceamg.com/xinweb11/tomcat-app1:1.9
在k8s中跑起来
启动tomcat pod
kind: Deployment
#apiVersion: extensions/v1beta1
apiVersion: apps/v1
metadata:
labels:
app: xin-tomcat-app1-deployment-label
name: xin-tomcat-app1-deployment
namespace: xin-web
spec:
replicas: 1
selector:
matchLabels:
app: xin-tomcat-app1-selector
template:
metadata:
labels:
app: xin-tomcat-app1-selector
spec:
containers:
- name: xin-tomcat-app1-container
image: harbor.ceamg.com/xinweb11/tomcat-app1:1.9
#command: ["/apps/tomcat/bin/run_tomcat.sh"]
#imagePullPolicy: IfNotPresent
imagePullPolicy: Always
ports:
- containerPort: 8080
protocol: TCP
name: http
env:
- name: "password"
value: "123456"
- name: "age"
value: "18"
resources:
limits:
cpu: 1
memory: "512Mi"
requests:
cpu: 500m
memory: "512Mi"
volumeMounts:
- name: xin-images
mountPath: /usr/local/nginx/html/webapp/images
readOnly: false
- name: xin-static
mountPath: /usr/local/nginx/html/webapp/static
readOnly: false
volumes:
- name: xin-images
nfs:
server: 10.1.0.38
path: /data/k8s/web1/images
- name: xin-static
nfs:
server: 10.1.0.38
path: /data/k8s/web1/static
# nodeSelector:
# project: xin
# app: tomcat
---
kind: Service
apiVersion: v1
metadata:
labels:
app: xin-tomcat-app1-service-label
name: xin-tomcat-app1-service
namespace: xin-web
spec:
type: NodePort
ports:
- name: http
port: 80
protocol: TCP
targetPort: 8080
nodePort: 40003
selector:
app: xin-tomcat-app1-selector
检测后端Tomcat SVC 连通性
ping xin-tomcat-app1-service.xin-web.svc.ceamg.local
启动nginx pod
kind: Deployment
apiVersion: apps/v1
metadata:
labels:
app: web1-nginx-deployment-label
name: web1-nginx-deployment
namespace: xin-web
spec:
replicas: 1
selector:
matchLabels:
app: web1-nginx-selector
template:
metadata:
labels:
app: web1-nginx-selector
spec:
containers:
- name: web1-nginx-container
image: harbor.ceamg.com/xinweb11/nginx-web1:v1.0
#command: ["/apps/tomcat/bin/run_tomcat.sh"]
#imagePullPolicy: IfNotPresent
imagePullPolicy: Always
ports:
- containerPort: 80
protocol: TCP
name: http
- containerPort: 443
protocol: TCP
name: https
env:
- name: "password"
value: "123456"
- name: "age"
value: "20"
resources:
limits:
cpu: 2
memory: 2Gi
requests:
cpu: 500m
memory: 1Gi
volumeMounts:
- name: xin-images
mountPath: /usr/local/nginx/html/webapp/images
readOnly: false
- name: xin-static
mountPath: /usr/local/nginx/html/webapp/static
readOnly: false
volumes:
- name: xin-images
nfs:
server: 10.1.0.38
path: /data/k8s/web1/images
- name: xin-static
nfs:
server: 10.1.0.38
path: /data/k8s/web1/static
#nodeSelector:
# group: magedu
---
kind: Service
apiVersion: v1
metadata:
labels:
app: web1-nginx-service-label
name: web1-nginx-service
namespace: xin-web
spec:
type: NodePort
ports:
- name: http
port: 80
protocol: TCP
targetPort: 80
nodePort: 40002
- name: https
port: 443
protocol: TCP
targetPort: 443
nodePort: 40443
selector:
app: web1-nginx-selector

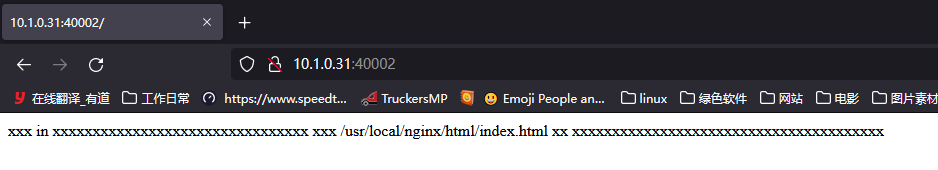

nginx 配置文件启用location 和 upstream 后端主机
upstream tomcat_webserver {
server xin-tomcat-app1-service.xin-web.svc.ceamg.local:80;
}
server {
listen 80;
server_name localhost;
#charset koi8-r;
#access_log logs/host.access.log main;
location / {
root html;
index index.html index.htm;
}
location /webapp {
root html;
index index.html index.htm;
}
location /myapp {
proxy_pass http://tomcat_webserver;
proxy_set_header Host $host;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Real-IP $remote_addr;
}
Loading word count...
