Kubeadm+外部etcd部署集群

Loading word count...

使用 kubeadm 和外部 etcd 部署 Kubernetes 集群，确保有至少三台服务器，一台用于 Kubernetes 控制平面（Master），另外两台用于 etcd 集群（建议三台以保证高可用性）。

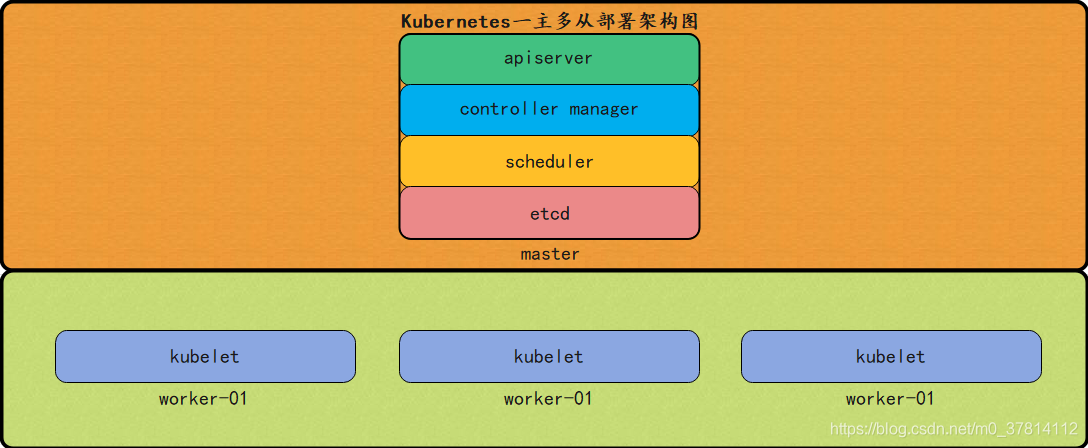

一、架构图

222

二、环境信息

主机名	系统版本	内核版本	K8S版本	IP地址	备注
etcd01,k8s-master-01	Ubuntu 20.04.3 LTS	5.4.0-81-generic	1.24.12	192.168.10.96	etcd节点,master节点
etcd02,k8s-node-01	Ubuntu 20.04.3 LTS	5.4.0-81-generic	1.24.12	192.168.10.97	etcd节点,node节点
etcd03,k8s-node-02	Ubuntu 20.04.3 LTS	5.4.0-81-generic	1.24.12	192.168.10.98	etcd节点,node节点

三、安装和配置先决条件

3.1、主机名设置

说明：分别在对应的节点IP上设置主机名。

hostnamectl set-hostname etcd01
hostnamectl set-hostname etcd02
hostnamectl set-hostname etcd03
hostnamectl set-hostname master01
hostnamectl set-hostname node02

3.2、配置主机hosts

说明：以下操作无论是master节点和worker节点均需要执行。

vim /etc/hosts
168.10.96 etcd01
168.10.97 etcd02
168.10.98 etcd03
168.10.96 master01
168.10.97 node01
168.10.98 node02

# 默认注释了源码镜像以提高 apt update 速度，如有需要可自行取消注释
deb http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal main restricted universe multiverse
# deb-src http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal main restricted universe multiverse
deb http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal-updates main restricted universe multiverse
# deb-src http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal-updates main restricted universe multiverse
deb http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal-backports main restricted universe multiverse
# deb-src http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal-backports main restricted universe multiverse

deb http://security.ubuntu.com/ubuntu/ focal-security main restricted universe multiverse
# deb-src http://security.ubuntu.com/ubuntu/ focal-security main restricted universe multiverse

# 预发布软件源，不建议启用
# deb http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal-proposed main restricted universe multiverse
# # deb-src http://mirrors.tuna.tsinghua.edu.cn/ubuntu/ focal-proposed main restricted universe multiverse

3.3、关闭防火墙

说明：以下操作无论是master节点和worker节点均需要执行。

ufw status
ufw disable

3.4、关闭selinux

说明：以下操作无论是master节点和worker节点均需要执行。

apt install selinux-utils -y
apt install policycoreutils -y
sed -i 's#SELINUX=permissive#SELINUX=disabled#g' /etc/selinux/config


sestatus -v
SELinux status:                 disabled

说明：如果selinux默认关闭则无需修改。

3.5、关闭swap分区

说明：以下操作无论是master节点和worker节点均需要执行。

swapoff -a
sed -i 's/^\/swapfile\(.*\)$/#\/swapfile \1/g' /etc/fstab

3.6、时间时区同步

说明：以下操作无论是master节点和worker节点均需要执行。

1、设置时区为Asia/Shanghai，如果已经是则请忽略

root@master01:~# timedatectl set-timezone Asia/Shanghai
root@master01:~#
root@master01:~# timedatectl
               Local time: Thu 2024-03-07 15:09:02 CST
           Universal time: Thu 2024-03-07 07:09:02 UTC
                 RTC time: Thu 2024-03-07 07:09:03
                Time zone: Asia/Shanghai (CST, +0800)
System clock synchronized: yes
              NTP service: active
          RTC in local TZ: no

2、使用chrony同步时间

apt install chrony -y
vim /etc/chrony/chrony.conf
server ntp.aliyun.com minpoll 4 maxpoll 10 iburst
server ntp1.aliyun.com minpoll 4 maxpoll 10 iburst
#pool ntp.ubuntu.com        iburst maxsources 4
#pool 0.ubuntu.pool.ntp.org iburst maxsources 1
#pool 1.ubuntu.pool.ntp.org iburst maxsources 1
#pool 2.ubuntu.pool.ntp.org iburst maxsources 2

systemctl enable chrony
systemctl restart chronyd.service
systemctl status chronyd.service

然后就是chrony客户端上的一些常用命令：

#查看可用的时间同步源
chronyc sources -v

#查看时间同步源的状态
chronyc sourcestats -v

#对客户端系统时间进行强制同步
chronyc -a makestep

3.7、修改内核参数

说明：以下操作无论是master节点和worker节点均需要执行。

说明：有一些ipv4的流量不能走iptables链，因为linux内核的一个过滤器，每个流量都会经过他，然后再匹配是否可进入当前应用进程去处理，所以会导致流量丢失。配置k8s.conf文件,如下所示：

cat <<EOF | tee /etc/modules-load.d/k8s.conf
overlay
br_netfilter
EOF

modprobe overlay
modprobe br_netfilter

# 设置所需的sysctl参数，参数在重新启动后保持不变
cat <<EOF | tee /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-iptables  = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward                 = 1
EOF

# 应用sysctl参数而不重新启动
sysctl --system

3.8、启用IPVS模式

说明：以下操作无论是master节点和worker节点均需要执行。

说明：ube-proxy开启ipvs的前提需要加载以下的内核模块

ip_vs
ip_vs_rr
ip_vs_wrr
ip_vs_sh
nf_conntrack_ipv4

果出现modprobe: FATAL: Module nf_conntrack_ipv4 not found in directory /lib/modules/5.15.0-69-generic错误，这是因为使用了高内核，当前内核版本为5.15.0-69-generic，在高版本内核已经把nf_conntrack_ipv4替换为nf_conntrack了。

# 1、安装ipvs
apt -y install ipvsadm ipset sysstat conntrack

# 2、加载内核模块脚本
cat > /etc/profile.d/ipvs.modules <<EOF
#!/bin/bash
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack
EOF
chmod 755 /etc/profile.d/ipvs.modules

#3、执行加载模块脚本
bash /etc/profile.d/ipvs.modules && lsmod | grep -e ip_vs -e nf_conntrack_ipv4

conntrack 是 Linux 内核的一个连接跟踪工具，用于跟踪和管理网络连接。它可以查看当前活动的连接状态、连接计数等信息，还可以手动添加、删除或修改连接跟踪条目。

四、安装etcd集群

4.1、手动生成etcd集群相关证书

说明：kubernetes系统各组件需要使用TLS(SSL)证书对通信进行加密，本文档使用CloudFlare的PKI工具集cfssl来生成Certificate Authority (CA) 证书和秘钥文件，CA是自签名的证书，用来签名后续创建的其它TLS证书。
说明：其中ca.pem、ca-key.pem、apiserver-etcd-client.pem、apiserver-etcd-client-key.pem文件是kube-apiserver连接etcd所需证书。这三个证书需要上传到master节点上，需提前创建好证书存放目录，建议目录如下：

证书文件	秘钥文件	建议路径	节点	说明
ca.pem	ca-key.pem	/etc/kubernetes/pki/etcd	master节点	etcd集群ca根证书
apiserver-etcd-client.pem	apiserver-etcd-client-key.pem	/etc/kubernetes/pki	master节点	apiserver连接etcd客户端证书

4.2、安装cfssl工具集

cfssl 是 Cloudflare 开发的一个工具集，用于配置和管理 TLS/SSL 证书。它提供了一组命令行工具，用于生成、签名和管理 SSL 证书、密钥和证书签名请求 (CSR)。cfssl 还支持从 JSON 配置文件中定义证书颁发机构 (CA) 和证书配置，并可以轻松地集成到自动化工作流程中。

curl -L https://github.com/cloudflare/cfssl/releases/download/v1.6.3/cfssl_1.6.3_linux_amd64 -o /usr/local/bin/cfssl
curl -L https://github.com/cloudflare/cfssl/releases/download/v1.6.3/cfssljson_1.6.3_linux_amd64  -o /usr/local/bin/cfssljson
curl -L https://github.com/cloudflare/cfssl/releases/download/v1.6.3/cfssl-certinfo_1.6.3_linux_amd64  -o /usr/local/bin/cfssl-certinfo
curl -L https://dl.k8s.io/release/v1.24.12/bin/linux/amd64/kubectl -o /usr/local/bin/kubectl

$ cp cfssl_1.6.3_linux_amd64 /usr/local/bin/cfssl
$ cp cfssljson_1.6.3_linux_amd64 /usr/local/bin/cfssljson
$ cp cfssl-certinfo_1.6.3_linux_amd64  /usr/local/bin/cfssl-certinfo
$ chmod +x /usr/local/bin/cfssl*

chmod +x /usr/local/bin/cfssl*

4.3、创建CA证书配置文件

说明：根据K8S集群要求，需要三个CA证书，分别是etcd CA证书、front-proxy CA证书、kubernetes CA证书。这些CA 证书可以共用一个相同的CA证书配置文件。

4.3.1、创建CA证书配置文件目录

mkdir -p /opt/ssl && cd /opt/ssl

vim ca-config.json
{
    "signing": {
        "default": {
            "expiry": "864000h"
        },
        "profiles": {
            "server": {
                "expiry": "864000h",
                "usages": [
                    "signing",
                    "key encipherment",
                    "server auth"
                ]
            },
            "client": {
                "expiry": "864000h",
                "usages": [
                    "signing",
                    "key encipherment",
                    "client auth"
                ]
            },
            "peer": {
                "expiry": "864000h",
                "usages": [
                    "signing",
                    "key encipherment",
                    "server auth",
                    "client auth"
                ]
            }
        }
    }
}

字段参数详解：

ca-config.json：可以定义多个profiles，分别指定不同的过期时间、使用场景等参数；后续在签名证书时使用某个profile；
signing：表示该证书可用于签名其它证书；生成的ca.pem证书中CA=TRUE；
peer：双向证书，用于etcd集群成员间通信
server auth：表示client可以用该CA对server提供的证书进行验证；
client auth：表示server可以用该CA对client提供的证书进行验证；

4.4、生成etcd相关证书

4.4.1、创建证书文件目录

mkdir -p /opt/ssl/etcd && cd /opt/ssl/etcd

4.4.2、生成 etcd CA 证书

1、创建etcd-ca-csr.json文件，这是etcd CA证书的签名请求文件

vim etcd-ca-csr.json
{
  "CN": "etcd-ca",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "etcd",
      "OU": "Etcd Security"
    }
  ],
  "ca": {
    "expiry": "876000h"
  }
}

字段参数详解：

CN: Common Name，浏览器使用该字段验证网站是否合法，一般写的是域名。非常重要。浏览器使用该字段验证网站是否合法
C: Country， 国家
ST: State，州，省
L: Locality，地区，城市
O: Organization Name，组织名称，公司名称
OU: Organization Unit Name，组织单位名称，公司部门

2、生成CA证书并复制到etcd各个节点的/etc/kubernetes/pki/etcd目录

cfssl gencert -initca etcd-ca-csr.json | cfssljson -bare ca
cp ca.pem ca-key.pem /etc/kubernetes/pki/etcd

4.4.3、生成etcd server证书

1、创建etcd-server-csr.json文件，这是etcd server证书的签名请求文件

vim etcd-server-csr.json
{
  "CN": "kube-etcd",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "etcd",
      "OU": "Etcd Security"
    }
  ]
}

2、生成server证书并复制到etcd各个节点和 master节点的/etc/kubernetes/pki/etcd目录

export etcd_hostname_list="127.0.0.1,etcd01,etcd02,etcd03,192.168.10.96,192.168.10.97,192.168.10.98"
cfssl gencert \
-ca=ca.pem -ca-key=ca-key.pem \
-config=../ca-config.json \
-hostname=${etcd_hostname_list} \
-profile=server \
-loglevel=1 etcd-server-csr.json | cfssljson -bare server

---
root@master01:/opt/ssl/etcd# cfssl gencert \
> -ca=ca.pem -ca-key=ca-key.pem \
> -config=../ca-config.json \
> -hostname=${etcd_hostname_list} \
> -profile=server \
> -loglevel=1 etcd-server-csr.json | cfssljson -bare server
2024/03/07 16:39:27 [INFO] generate received request
2024/03/07 16:39:27 [INFO] received CSR
2024/03/07 16:39:27 [INFO] generating key: rsa-2048

2024/03/07 16:39:27 [INFO] encoded CSR
2024/03/07 16:39:27 [INFO] signed certificate with serial number 419232648468514885186105614358060927394626523270

---
root@master01:/opt/ssl/etcd# ls
ca.csr  ca-key.pem  ca.pem  etcd-ca-csr.json  etcd-server-csr.json  server.csr  server-key.pem  server.pem

cp server.pem server-key.pem /etc/kubernetes/pki/etcd

4.4.4、生成etcd client证书

1、创建etcd-client-csr.json文件，这是etcd client证书的签名请求文件

vim etcd-client-csr.json
{
  "CN": "kube-etcd-healthcheck-client",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "etcd",
      "OU": "Etcd Security"
    }
  ]
}

2、生成client证书并复制到etcd各个节点的/etc/kubernetes/pki/etcd目录

cfssl gencert \
-ca=ca.pem -ca-key=ca-key.pem \
-config=../ca-config.json -profile=client \
-loglevel=1 etcd-client-csr.json | cfssljson -bare healthcheck-client

root@master01:/opt/ssl/etcd# cfssl gencert \
> -ca=ca.pem -ca-key=ca-key.pem \
> -config=../ca-config.json -profile=client \
> -loglevel=1 etcd-client-csr.json | cfssljson -bare healthcheck-client
2024/03/07 16:40:50 [INFO] generate received request
2024/03/07 16:40:50 [INFO] received CSR
2024/03/07 16:40:50 [INFO] generating key: rsa-2048
2024/03/07 16:40:50 [INFO] encoded CSR
2024/03/07 16:40:50 [INFO] signed certificate with serial number 695857563543274434659736593339791061583803283439
2024/03/07 16:40:50 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").
root@master01:/opt/ssl/etcd# ls
ca.csr      ca.pem            etcd-client-csr.json  healthcheck-client.csr      healthcheck-client.pem  server-key.pem
ca-key.pem  etcd-ca-csr.json  etcd-server-csr.json  healthcheck-client-key.pem  server.csr              server.pem


cp healthcheck-client.pem healthcheck-client-key.pem /etc/kubernetes/pki/etcd

4.4.5、生成etcd peer证书

1、创建etcd-peer-csr.json文件，这是etcd peer证书的签名请求文件

vim etcd-peer-csr.json
{
  "CN": "kube-etcd-peer",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "etcd",
      "OU": "Etcd Security"
    }
  ]
}

2、生成peer证书并复制到etcd各个节点的/etc/kubernetes/pki/etcd目录

export etcd_hostname_list="127.0.0.1,etcd01,etcd02,etcd03,192.168.10.96,192.168.10.97,192.168.10.98"
cfssl gencert \
-ca=ca.pem -ca-key=ca-key.pem \
-config=../ca-config.json \
-hostname=${etcd_hostname_list} \
-profile=peer \
-loglevel=1 etcd-peer-csr.json | cfssljson -bare peer

cp peer.pem peer-key.pem /etc/kubernetes/pki/etcd

mkdir /etc/kubernetes/pki/etcd/ -p

#1、etcd各个节点所需证书
scp ca-key.pem ca.pem healthcheck-client.pem healthcheck-client-key.pem peer.pem \
peer-key.pem server.pem server-key.pem root@192.168.10.97:/etc/kubernetes/pki/etcd/

scp ca-key.pem ca.pem healthcheck-client.pem healthcheck-client-key.pem peer.pem \
peer-key.pem server.pem server-key.pem root@192.168.10.98:/etc/kubernetes/pki/etcd/

#2、master节点所需证书
cp /opt/ssl/etcd/ca.pem /opt/ssl/etcd/ca-key.pem /etc/kubernetes/pki/etcd/
cp /opt/ssl/etcd/apiserver-etcd-client.pem /opt/ssl/etcd/apiserver-etcd-client-key.pem /etc/kubernetes/pki/etcd/
cp /opt/ssl/etcd/peer-key.pem /opt/ssl/etcd/peer.pem /etc/kubernetes/pki/etcd/

#master节点所需证书
cp server.pem server-key.pem healthcheck-client.pem healthcheck-client-key.pem peer.pem peer-key.pem apiserver-etcd-client.pem apiserver-etcd-client-key.pem /etc/kubernetes/pki/etcd

4.4.6、生成apiserver访问etcd client证书

说明：apiserver-etcd-client.pem、apiserver-etcd-client-key.pem用于API服务器安全地连接到etcd的客户端证书。

1、创建apiserver-etcd-client-csr.json文件，这是etcd客户端证书的签名请求文件

vim apiserver-etcd-client-csr.json
{
  "CN": "kube-apiserver-etcd-client",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "system:masters",
      "OU": "Kubernetes-manual"
    }
  ]
}

2、生成apiserver-etcd-client证书并复制到master节点的/etc/kubernetes/pki目录

cfssl gencert \
-ca=/opt/ssl/etcd/ca.pem -ca-key=/opt/ssl/etcd/ca-key.pem \
-config=../ca-config.json \
-profile=client \
-loglevel=1 apiserver-etcd-client-csr.json | cfssljson -bare apiserver-etcd-client

cp apiserver-etcd-client.pem apiserver-etcd-client-key.pem /etc/kubernetes/pki

4.5、二进制安装etcd集群

4.5.1、下载etcd二进制安装包

wget https://github.com/etcd-io/etcd/releases/download/v3.5.6/etcd-v3.5.6-linux-amd64.tar.gz
tar axf /tmp/etcd-v3.5.6-linux-amd64.tar.gz
mv ./etcd-v3.5.6-linux-amd64/etcd* /usr/bin

root@master01:~# scp etcd-v3.5.6-linux-amd64.tar.gz 192.168.10.97:/tmp
root@master01:~# scp etcd-v3.5.6-linux-amd64.tar.gz 192.168.10.98:/tmp

4.5.2、创建Service文件

etcd01节点

root@etcd01:~# cat /etc/systemd/system/etcd.service
[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target
Documentation=https://github.com/coreos

[Service]
Type=notify
WorkingDirectory=/var/lib/etcd
ExecStart=/usr/bin/etcd \
  --name=etcd01 \
  --cert-file=/etc/kubernetes/pki/etcd/server.pem \
  --key-file=/etc/kubernetes/pki/etcd/server-key.pem \
  --peer-cert-file=/etc/kubernetes/pki/etcd/peer.pem \
  --peer-key-file=/etc/kubernetes/pki/etcd/peer-key.pem \
  --trusted-ca-file=/etc/kubernetes/pki/etcd/ca.pem \
  --peer-trusted-ca-file=/etc/kubernetes/pki/etcd/ca.pem \
  --initial-advertise-peer-urls=https://192.168.10.96:2380 \
  --listen-peer-urls=https://192.168.10.96:2380 \
  --listen-client-urls=https://192.168.10.96:2379,http://127.0.0.1:2379 \
  --advertise-client-urls=https://192.168.10.96:2379 \
  --initial-cluster-token=etcd-cluster \
  --initial-cluster="etcd01=https://192.168.10.96:2380,etcd02=https://192.168.10.97:2380,etcd03=https://192.168.10.98:2380" \
  --initial-cluster-state=new \
  --data-dir=/var/lib/etcd \
  --wal-dir="" \
  --snapshot-count=50000 \
  --auto-compaction-retention=1 \
  --auto-compaction-mode=periodic \
  --max-request-bytes=10485760 \
  --quota-backend-bytes=8589934592
Restart=always
RestartSec=15
LimitNOFILE=65536
OOMScoreAdjust=-999

[Install]
WantedBy=multi-user.target

etcd02节点

root@etcd02:~#  cat /etc/systemd/system/etcd.service
[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target
Documentation=https://github.com/coreos

[Service]
Type=notify
WorkingDirectory=/var/lib/etcd
ExecStart=/usr/bin/etcd \
  --name=etcd02 \
  --cert-file=/etc/kubernetes/pki/etcd/server.pem \
  --key-file=/etc/kubernetes/pki/etcd/server-key.pem \
  --peer-cert-file=/etc/kubernetes/pki/etcd/peer.pem \
  --peer-key-file=/etc/kubernetes/pki/etcd/peer-key.pem \
  --trusted-ca-file=/etc/kubernetes/pki/etcd/ca.pem \
  --peer-trusted-ca-file=/etc/kubernetes/pki/etcd/ca.pem \
  --initial-advertise-peer-urls=https://192.168.10.97:2380 \
  --listen-peer-urls=https://192.168.10.97:2380 \
  --listen-client-urls=https://192.168.10.97:2379,http://127.0.0.1:2379 \
  --advertise-client-urls=https://192.168.10.97:2379 \
  --initial-cluster-token=etcd-cluster \
  --initial-cluster="etcd01=https://192.168.10.96:2380,etcd02=https://192.168.10.97:2380,etcd03=https://192.168.10.98:2380" \
  --initial-cluster-state=new \
  --data-dir=/var/lib/etcd \
  --wal-dir="" \
  --snapshot-count=50000 \
  --auto-compaction-retention=1 \
  --auto-compaction-mode=periodic \
  --max-request-bytes=10485760 \
  --quota-backend-bytes=8589934592
Restart=always
RestartSec=15
LimitNOFILE=65536
OOMScoreAdjust=-999

[Install]
WantedBy=multi-user.target

eth03

root@etcd03:~# cat /etc/systemd/system/etcd.service
[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target
Documentation=https://github.com/coreos

[Service]
Type=notify
WorkingDirectory=/var/lib/etcd
ExecStart=/usr/bin/etcd \
  --name=etcd03 \
  --cert-file=/etc/kubernetes/pki/etcd/server.pem \
  --key-file=/etc/kubernetes/pki/etcd/server-key.pem \
  --peer-cert-file=/etc/kubernetes/pki/etcd/peer.pem \
  --peer-key-file=/etc/kubernetes/pki/etcd/peer-key.pem \
  --trusted-ca-file=/etc/kubernetes/pki/etcd/ca.pem \
  --peer-trusted-ca-file=/etc/kubernetes/pki/etcd/ca.pem \
  --initial-advertise-peer-urls=https://192.168.10.98:2380 \
  --listen-peer-urls=https://192.168.10.98:2380 \
  --listen-client-urls=https://192.168.10.98:2379,http://127.0.0.1:2379 \
  --advertise-client-urls=https://192.168.10.98:2379 \
  --initial-cluster-token=etcd-cluster \
  --initial-cluster="etcd01=https://192.168.10.96:2380,etcd02=https://192.168.10.97:2380,etcd03=https://192.168.10.98:2380" \
  --initial-cluster-state=new \
  --data-dir=/var/lib/etcd \
  --wal-dir="" \
  --snapshot-count=50000 \
  --auto-compaction-retention=1 \
  --auto-compaction-mode=periodic \
  --max-request-bytes=10485760 \
  --quota-backend-bytes=8589934592
Restart=always
RestartSec=15
LimitNOFILE=65536
OOMScoreAdjust=-999

[Install]
WantedBy=multi-user.target

4.5.3、启动etcd服务

注意：必须创建先etcd数据目录和工作目录。

$ mkdir /var/lib/etcd && chmod 700 /var/lib/etcd
systemctl daemon-reload && systemctl enable etcd && systemctl restart etcd

4.5.4、检查etcd集群状态

root@master01:~# systemctl status etcd.service
● etcd.service - Etcd Server
     Loaded: loaded (/etc/systemd/system/etcd.service; enabled; vendor preset: enabled)
     Active: active (running) since Thu 2024-03-07 17:22:26 CST; 1min 12s ago
       Docs: https://github.com/coreos
   Main PID: 864881 (etcd)
      Tasks: 13 (limit: 9447)
     Memory: 26.3M
     CGroup: /system.slice/etcd.service
             └─864881 /usr/bin/etcd --name=etcd01 --cert-file=/etc/kubernetes/pki/etcd/server.pem --key-file=/etc/kubernetes/pki/etcd/server-key.pem --peer

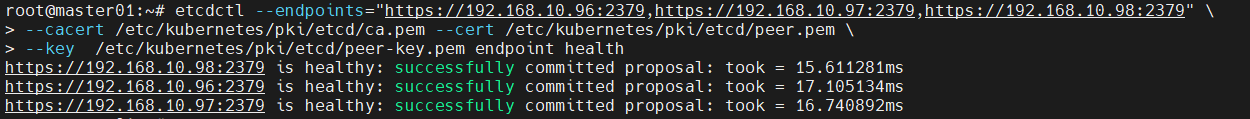

etcdctl --endpoints="https://192.168.10.96:2379,https://192.168.10.97:2379,https://192.168.10.98:2379" \
--cacert /etc/kubernetes/pki/etcd/ca.pem --cert /etc/kubernetes/pki/etcd/peer.pem \
--key  /etc/kubernetes/pki/etcd/peer-key.pem endpoint health

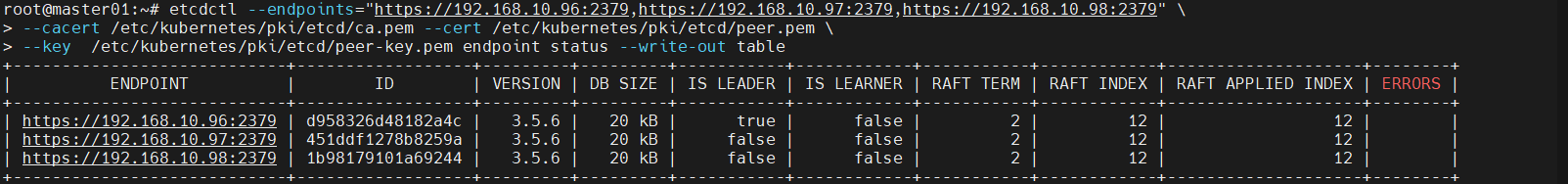

etcdctl --endpoints="https://192.168.10.96:2379,https://192.168.10.97:2379,https://192.168.10.98:2379" \
--cacert /etc/kubernetes/pki/etcd/ca.pem --cert /etc/kubernetes/pki/etcd/peer.pem \
--key  /etc/kubernetes/pki/etcd/peer-key.pem endpoint status --write-out table

如下图所示：

4.5.6、etcd集群备份

备份etcd集群可以通过两种方式完成：etcd内置快照和卷快照。
参考：《Kubernetes备份篇：etcd集群数据备份与恢复》

五、安装containerd

说明：以下操作无论是master节点和worker节点均需要执行。

kubernetes 1.24.x以后版本默认CRI为containerd，cri称之为容器运行时插件。

方式一、二进制安装
方式二、apt工具安装

5.1、安装软件包

apt-cache madison containerd
containerd | 1.7.2-0ubuntu1~20.04.1 | http://mirrors.tuna.tsinghua.edu.cn/ubuntu focal-updates/main amd64 Packages
containerd | 1.6.12-0ubuntu1~20.04.3 | http://security.ubuntu.com/ubuntu focal-security/main amd64 Packages
containerd | 1.3.3-0ubuntu2 | http://mirrors.tuna.tsinghua.edu.cn/ubuntu focal/main amd64 Packages

apt install containerd=1.6.12-0ubuntu1~20.04.3

5.2、生成默认配置文件

mkdir -p /etc/containerd&& containerd config default > /etc/containerd/config.toml

5.3、配置systemd cgroup驱动

sed -i 's#SystemdCgroup = false#SystemdCgroup = true#g' /etc/containerd/config.toml

5.4、重载沙箱（pause）镜像

sed -i 's#sandbox_image = "registry.k8s.io/pause:3.6"#sandbox_image = "registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.7"#g' /etc/containerd/config.toml

5.5、重启containerd服务并设置开机自启

systemctl restart containerd && systemctl enable containerd

说明：由于网络问题，无法下载国外的K8S镜像，所以这里使用阿里云的镜像仓库地址registry.cn-hangzhou.aliyuncs.com/google_containers代替。如果你有阿里云的账号，可以对 containerd配置镜像加速地址来实现快速下载镜像。

5.6、下载pause镜像

ctr image pull --all-platforms registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.7

5.7、配置containerd配置镜像加速

直接在/etc/containerd/config.toml文件中添加配置，配置好后重启containerd服务：

      [plugins."io.containerd.grpc.v1.cri".registry.mirrors]
        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."docker.io"]
          endpoint = ["https://zltjecyf.mirror.aliyuncs.com"]
      [plugins."io.containerd.grpc.v1.cri".registry.mirrors."k8s.gcr.io"]
          endpoint = ["https://registry.aliyuncs.com/k8sxio"]

5.8、安装crictl命令行工具

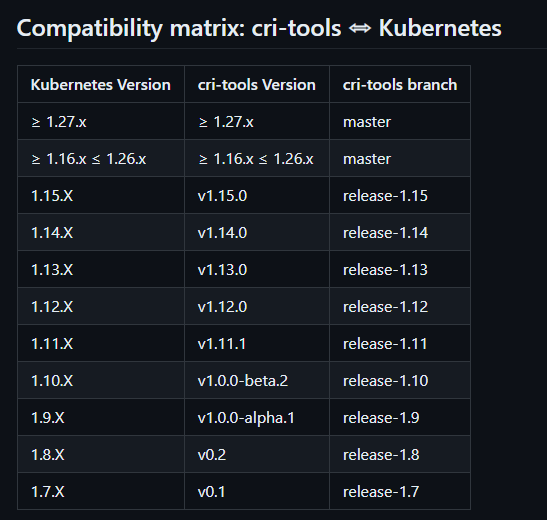

crictl与kubernetes版本对应：
https://github.com/kubernetes-sigs/cri-tools/releases/tag/v1.26.1

crictl-v1.26.1-linux-amd64.tar.gz 链接：https://pan.baidu.com/s/1D3wqxUWo6Zz7PHZ_00l9zA?pwd=k8ss 提取码：k8ss

tar axf crictl-v1.26.1-linux-amd64.tar.gz -C /usr/local/bin

说明：ctr是containerd自带的CLI命令行工具，crictl是k8s中CRI（容器运行时接口）的客户端，k8s使用该客户端和containerd进行交互。

5.9、安装nerdctl命令行工具

下载安装

nerdctl-1.7.4-linux-amd64.tar.gz 链接：https://pan.baidu.com/s/1hdIp5ltCmr59FISKVlUyhQ?pwd=k8ss** ** **提取码：k8ss **

官方下载地址： https://github.com/containerd/nerdctl/releases，在 Asset 中选择下载精简或者完全安装包。

tar -xzvf nerdctl-*-linux-amd64.tar.gz -C /usr/local/bin/

六、安装kubelet、kubeadm和kubectl

说明：以下操作无论是master节点和worker节点均需要执行。

#1、安装使用Kubernetes apt仓库所需要的包
$ apt install containerd=1.6.12-0ubuntu1~20.04.3

#2、编辑镜像源文件，加入阿里云k8s镜像源配置
cat <<EOF >/etc/apt/sources.list.d/kubernetes.list
deb https://mirrors.aliyun.com/kubernetes/apt/ kubernetes-xenial main
EOF

#3、编辑镜像源文件，加入阿里云k8s镜像源配置
$ curl https://mirrors.aliyun.com/kubernetes/apt/doc/apt-key.gpg | sudo apt-key add

#更新源
$ apt-get update

#5、安装指定版本kubeadm、kubelet、kubectl
$ apt-get install -y kubelet=1.24.12-00 kubeadm=1.24.12-00 kubectl=1.24.12-00


#设置kubelet开机自启
$ systemctl enable kubelet

#kubectl命令补全
$ echo "source <(kubectl completion bash)" >> /etc/profile.d/k8s.sh
$ source /etc/profile.d/k8s.sh

七、k8s镜像下载

说明：以下操作无论是master节点和worker节点均需要执行。

需要下载的镜像

registry.k8s.io/kube-apiserver:v1.24.12
registry.k8s.io/kube-controller-manager:v1.24.12
registry.k8s.io/kube-scheduler:v1.24.12
registry.k8s.io/kube-proxy:v1.24.12
registry.k8s.io/pause:3.7
registry.k8s.io/etcd:3.5.6-0
registry.k8s.io/coredns/coredns:v1.8.6

使用国内源下载相关镜像

#!/bin/bash
k8s_version=v1.24.12
pause_version=3.7
etcd_version=3.5.6-0
coredns_version=v1.8.6
registry_address=registry.cn-hangzhou.aliyuncs.com/google_containers
ctr image pull --all-platforms ${registry_address}/kube-apiserver:${k8s_version}
ctr image pull --all-platforms ${registry_address}/kube-controller-manager:${k8s_version}
ctr image pull --all-platforms ${registry_address}/kube-scheduler:${k8s_version}
ctr image pull --all-platforms ${registry_address}/kube-proxy:${k8s_version}
ctr image pull --all-platforms ${registry_address}/pause:${pause_version}
ctr image pull --all-platforms ${registry_address}/etcd:${etcd_version}
ctr image pull --all-platforms ${registry_address}/coredns:${coredns_version}

将镜像并打包成tar.gz格式

#!/bin/bash
k8s_version=v1.24.12
pause_version=3.7
etcd_version=3.5.6-0
coredns_version=v1.8.6
registry_address=registry.cn-hangzhou.aliyuncs.com/google_containers
ctr image export --all-platforms kube-apiserver-${k8s_version}.tar.gz ${registry_address}/kube-apiserver:${k8s_version}
ctr image export --all-platforms kube-controller-manager-${k8s_version}.tar.gz ${registry_address}/kube-controller-manager:${k8s_version}
ctr image export --all-platforms kube-scheduler-${k8s_version}.tar.gz \${registry_address}/kube-scheduler:${k8s_version}
ctr image export --all-platforms kube-proxy-${k8s_version}.tar.gz ${registry_address}/kube-proxy:${k8s_version}
ctr image export --all-platforms pause-${pause_version}.tar.gz ${registry_address}/pause:${pause_version}
ctr image export --all-platforms etcd-${etcd_version}.tar.gz ${registry_address}/etcd:${etcd_version}
ctr image export --all-platforms coredns-${coredns_version}.tar.gz ${registry_address}/coredns:${coredns_version}

说明：由于网络问题，无法访问registry.k8s.io镜像仓库地址，这里使用国内阿里云的镜像仓库来下载k8s镜像。如果你的是专网环境，请找一台能访问阿里云镜像仓库的服务器下载然后打包成tar.gz格式，上传到要部署的专网服务器，通过ctr image import命令导入镜像即可。

八、使用kubeadm init初始化集群

说明：以下操作仅在master节点执行。

8.1、生成默认kubeadm初始化config文件

$ kubeadm config print init-defaults > kubeadm.yaml

8.2、修改kubeadm默认config文件

$ vim kubeadm.yaml

apiVersion: kubeadm.k8s.io/v1beta3
kind: InitConfiguration
bootstrapTokens:
- groups:
  - system:bootstrappers:kubeadm:default-node-token
  token: abcdef.0123456789abcdef
  ttl: 24h0m0s
  usages:
  - signing
  - authentication
localAPIEndpoint:
  advertiseAddress: "192.168.10.96"
  bindPort: 6443
nodeRegistration:
  criSocket: unix:///var/run/containerd/containerd.sock
  imagePullPolicy: IfNotPresent
  name: master01
  taints: #给master添加污点，master节点不能调度应用
    - effect: "NoSchedule"
      key: "node-role.kubernetes.io/master"
---
apiVersion: kubeadm.k8s.io/v1beta3
kind: ClusterConfiguration
etcd:
  external:
    endpoints:
    - https://192.168.10.96:2379
    - https://192.168.10.97:2379
    - https://192.168.10.98:2379
    caFile: /etc/kubernetes/pki/etcd/ca.pem # 连接etcd所需证书
    certFile: /etc/kubernetes/pki/apiserver-etcd-client.pem
    keyFile: /etc/kubernetes/pki/apiserver-etcd-client-key.pem
networking:
  dnsDomain: cluster.local
  serviceSubnet: 10.96.0.0/12
  podSubnet: 10.244.0.0/16
kubernetesVersion: "v1.24.12"
controlPlaneEndpoint: "192.168.10.96:6443"
apiServer:
  extraArgs:
    service-node-port-range: 30000-36000
  timeoutForControlPlane: 4m0s
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns: {}
imageRepository: "registry.cn-hangzhou.aliyuncs.com/google_containers"

---
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
mode: ipvs

8.3、使用kubeadm init初始化集群

root@master01:~/k8sdata/init# kubeadm init --config=kubeadm.yaml
[init] Using Kubernetes version: v1.24.12
[preflight] Running pre-flight checks
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local master01] and IPs [10.244.0.1 192.168.10.96]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] External etcd mode: Skipping etcd/ca certificate authority generation
[certs] External etcd mode: Skipping etcd/server certificate generation
[certs] External etcd mode: Skipping etcd/peer certificate generation
[certs] External etcd mode: Skipping etcd/healthcheck-client certificate generation
[certs] External etcd mode: Skipping apiserver-etcd-client certificate generation
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[kubeconfig] Writing "admin.conf" kubeconfig file
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Starting the kubelet
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
[control-plane] Creating static Pod manifest for "kube-scheduler"
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[apiclient] All control plane components are healthy after 10.503878 seconds
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --upload-certs
[mark-control-plane] Marking the node master01 as control-plane by adding the labels: [node-role.kubernetes.io/control-plane node.kubernetes.io/exclude-from-external-load-balancers]
[mark-control-plane] Marking the node master01 as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule]
[bootstrap-token] Using token: abcdef.0123456789abcdef
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] Configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] Configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy

Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

Alternatively, if you are the root user, you can run:

  export KUBECONFIG=/etc/kubernetes/admin.conf

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

You can now join any number of control-plane nodes by copying certificate authorities
and service account keys on each node and then running the following as root:

  kubeadm join 192.168.10.96:6443 --token abcdef.0123456789abcdef \
        --discovery-token-ca-cert-hash sha256:fc9ca7c0388b444f80b339e6595fd32feee9da46ea1c9a61528481a69fc3e006 \
        --control-plane

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 192.168.10.96:6443 --token abcdef.0123456789abcdef \
        --discovery-token-ca-cert-hash sha256:fc9ca7c0388b444f80b339e6595fd32feee9da46ea1c9a61528481a69fc3e006

8.4、node01节点加入K8S集群

root@node01:~# kubeadm join 192.168.10.96:6443 --token abcdef.0123456789abcdef \
>         --discovery-token-ca-cert-hash sha256:fc9ca7c0388b444f80b339e6595fd32feee9da46ea1c9a61528481a69fc3e006
[preflight] Running pre-flight checks
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...

This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.

Run 'kubectl get nodes' on the control-plane to see this node join the cluster.

8.5、node02节点加入K8S集群

root@node02:~# kubeadm join 192.168.10.96:6443 --token abcdef.0123456789abcdef \
>         --discovery-token-ca-cert-hash sha256:fc9ca7c0388b444f80b339e6595fd32feee9da46ea1c9a61528481a69fc3e006
[preflight] Running pre-flight checks
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...

This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.

Run 'kubectl get nodes' on the control-plane to see this node join the cluster.

查看集群状态

$ kubectl get nodes
NAME       STATUS     ROLES           AGE     VERSION
master01   NotReady   control-plane   4m36s   v1.24.12
node01     NotReady   <none>          67s     v1.24.12
node02     NotReady   <none>          41s     v1.24.12

因为没有安装网络插件处于NotReady状态

九、安装网络组件

这个时候其实集群还不能正常使用，因为还没有安装网络插件，接下来安装网络插件，可以在文档 https://kubernetes.io/docs/setup/production-environment/tools/kubeadm/create-cluster-kubeadm/ 中选择我们自己的网络插件，这里我们安装 flannel:
https://github.com/flannel-io/flannel

apiVersion: v1
kind: Namespace
metadata:
  labels:
    k8s-app: flannel
    pod-security.kubernetes.io/enforce: privileged
  name: kube-flannel
---
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: flannel
  name: flannel
  namespace: kube-flannel
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    k8s-app: flannel
  name: flannel
rules:
- apiGroups:
  - ""
  resources:
  - pods
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - nodes
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - nodes/status
  verbs:
  - patch
- apiGroups:
  - networking.k8s.io
  resources:
  - clustercidrs
  verbs:
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    k8s-app: flannel
  name: flannel
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: flannel
subjects:
- kind: ServiceAccount
  name: flannel
  namespace: kube-flannel
---
apiVersion: v1
data:
  cni-conf.json: |
    {
      "name": "cbr0",
      "cniVersion": "0.3.1",
      "plugins": [
        {
          "type": "flannel",
          "delegate": {
            "hairpinMode": true,
            "isDefaultGateway": true
          }
        },
        {
          "type": "portmap",
          "capabilities": {
            "portMappings": true
          }
        }
      ]
    }
  net-conf.json: |
    {
      "Network": "10.244.0.0/16",
      "Backend": {
        "Type": "vxlan"
      }
    }
kind: ConfigMap
metadata:
  labels:
    app: flannel
    k8s-app: flannel
    tier: node
  name: kube-flannel-cfg
  namespace: kube-flannel
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  labels:
    app: flannel
    k8s-app: flannel
    tier: node
  name: kube-flannel-ds
  namespace: kube-flannel
spec:
  selector:
    matchLabels:
      app: flannel
      k8s-app: flannel
  template:
    metadata:
      labels:
        app: flannel
        k8s-app: flannel
        tier: node
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: kubernetes.io/os
                operator: In
                values:
                - linux
      containers:
      - args:
        - --ip-masq
        - --kube-subnet-mgr
        - --iface=eth0
        command:
        - /opt/bin/flanneld
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: EVENT_QUEUE_DEPTH
          value: "5000"
        image: docker.io/flannel/flannel:v0.24.3
        name: kube-flannel
        resources:
          requests:
            cpu: 100m
            memory: 50Mi
        securityContext:
          capabilities:
            add:
            - NET_ADMIN
            - NET_RAW
          privileged: false
        volumeMounts:
        - mountPath: /run/flannel
          name: run
        - mountPath: /etc/kube-flannel/
          name: flannel-cfg
        - mountPath: /run/xtables.lock
          name: xtables-lock
      hostNetwork: true
      initContainers:
      - args:
        - -f
        - /flannel
        - /opt/cni/bin/flannel
        command:
        - cp
        image: docker.io/flannel/flannel-cni-plugin:v1.4.0-flannel1
        name: install-cni-plugin
        volumeMounts:
        - mountPath: /opt/cni/bin
          name: cni-plugin
      - args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        command:
        - cp
        image: docker.io/flannel/flannel:v0.24.3
        name: install-cni
        volumeMounts:
        - mountPath: /etc/cni/net.d
          name: cni
        - mountPath: /etc/kube-flannel/
          name: flannel-cfg
      priorityClassName: system-node-critical
      serviceAccountName: flannel
      tolerations:
      - effect: NoSchedule
        operator: Exists
      volumes:
      - hostPath:
          path: /run/flannel
        name: run
      - hostPath:
          path: /opt/cni/bin
        name: cni-plugin
      - hostPath:
          path: /etc/cni/net.d
        name: cni
      - configMap:
          name: kube-flannel-cfg
        name: flannel-cfg
      - hostPath:
          path: /run/xtables.lock
          type: FileOrCreate
        name: xtables-lock

$ vim kube-flannel.yml
$ kubectl appl -f  kube-flannel.yml

十、安装Kubernetes-Dashboard

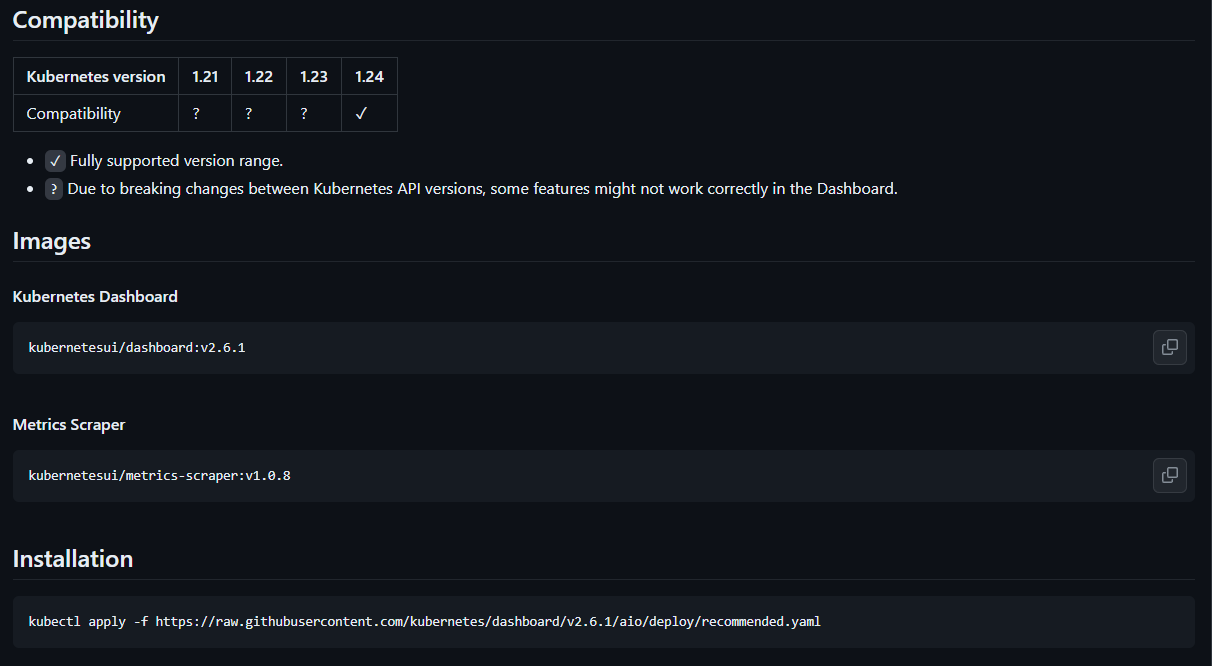

1.24版本的K8S对应dashboard 2.6.1版本
具体：https://github.com/kubernetes/dashboard/releases/tag/v2.6.1

10.1、增加NodePort方式暴露服务

官方部署仪表板的服务没使用nodeport，将yaml文件下载到本地，在service里添加nodeport

$ wget  https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0-rc7/aio/deploy/recommended.yaml

如果此方式无法下载可通过浏览器访问自行创建

# 编辑文件
$ vim recommended.yaml

# ------------------------
kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  type: NodePort		#新增
  ports:
    - port: 443
      targetPort: 8443
      nodePort: 30000	#新增
  selector:
    k8s-app: kubernetes-dashboard

# 部署Dashboard
kubectl create -f recommended.yaml

创建完成后，检查相关服务运行状态

$ kubectl get deployment kubernetes-dashboard -n kubernetes-dashboard
$ kubectl get pods -n kubernetes-dashboard -o wide
$ kubectl get services -n kubernetes-dashboard
$ netstat -ntlp|grep 30001

在浏览器中访问Dashboard

10.2、创建Dashboard-admin token

$ kubectl create serviceaccount  dashboard-admin -n kube-system
$ kubectl create clusterrolebinding  dashboard-admin --clusterrole=cluster-admin --serviceaccount=kube-system:dashboard-admin
$ kubectl describe secrets -n kube-system $(kubectl -n kube-system get secret | awk '/dashboard-admin/{print $1}')

1.24版本创建不过期token

$ kubectl create serviceaccount  dashboard-admin -n kube-system
$ kubectl create clusterrolebinding  dashboard-admin --clusterrole=cluster-admin --serviceaccount=kube-system:dashboard-admin

apiVersion: v1
kind: ServiceAccount
metadata:
  name: dashboard-admin
  namespace: kube-system
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: dashboard-admin
subjects:
  - kind: ServiceAccount
    name: dashboard-admin
    namespace: kube-system
roleRef:
  kind: ClusterRole
  name: cluster-admin
  apiGroup: rbac.authorization.k8s.io
---
# 上面均为正常的建立ServiceAccount并与集群默认角色cluster-admin进行绑定
# 下面为手动建立secret文件进行永久token建立
apiVersion: v1
kind: Secret
metadata:
  name: secret-admin
  namespace: kube-system
  annotations:
    kubernetes.io/service-account.name: "dashboard-admin"
type: kubernetes.io/service-account-token

# 查看token
$ kubectl describe -n kube-system secret/secret-admin

一、架构图​

二、环境信息​

三、安装和配置先决条件​

3.1、主机名设置​

3.2、配置主机hosts​

3.3、关闭防火墙​

3.4、关闭selinux​

3.5、关闭swap分区​

3.6、时间时区同步​

3.7、修改内核参数​

3.8、启用IPVS模式​

四、安装etcd集群​

4.1、手动生成etcd集群相关证书​

4.2、安装cfssl工具集​

4.3、创建CA证书配置文件​

4.3.1、创建CA证书配置文件目录​

4.4、生成etcd相关证书​

4.4.1、创建证书文件目录​

4.4.2、生成 etcd CA 证书​

4.4.3、生成etcd server证书​

4.4.4、生成etcd client证书​

4.4.5、生成etcd peer证书​

4.4.6、生成apiserver访问etcd client证书​

4.5、二进制安装etcd集群​

4.5.2、创建Service文件​

4.5.3、启动etcd服务​

4.5.4、检查etcd集群状态​

4.5.6、etcd集群备份​

五、安装containerd​

5.1、安装软件包​

5.2、生成默认配置文件​

5.3、配置systemd cgroup驱动​

5.4、重载沙箱（pause）镜像​

5.5、重启containerd服务并设置开机自启​

5.6、下载pause镜像​

5.7、配置containerd配置镜像加速​

5.8、安装crictl命令行工具​

5.9、安装nerdctl命令行工具​

六、安装kubelet、kubeadm和kubectl​

七、k8s镜像下载​

八、使用kubeadm init初始化集群​

8.1、生成默认kubeadm初始化config文件​

8.2、修改kubeadm默认config文件​

8.3、 使用kubeadm init初始化集群​

8.4、node01节点加入K8S集群​

8.5、node02节点加入K8S集群​

九、安装网络组件​

十、安装Kubernetes-Dashboard​

10.1、增加NodePort方式暴露服务​

10.2、创建Dashboard-admin token​

一、架构图

二、环境信息

三、安装和配置先决条件

3.1、主机名设置

3.2、配置主机hosts

3.3、关闭防火墙

3.4、关闭selinux

3.5、关闭swap分区

3.6、时间时区同步

3.7、修改内核参数

3.8、启用IPVS模式

四、安装etcd集群

4.1、手动生成etcd集群相关证书

4.2、安装cfssl工具集

4.3、创建CA证书配置文件

4.3.1、创建CA证书配置文件目录

4.4、生成etcd相关证书

4.4.1、创建证书文件目录

4.4.2、生成 etcd CA 证书

4.4.3、生成etcd server证书

4.4.4、生成etcd client证书

4.4.5、生成etcd peer证书

4.4.6、生成apiserver访问etcd client证书

4.5、二进制安装etcd集群

4.5.2、创建Service文件

4.5.3、启动etcd服务

4.5.4、检查etcd集群状态

4.5.6、etcd集群备份

五、安装containerd

5.1、安装软件包

5.2、生成默认配置文件

5.3、配置systemd cgroup驱动

5.4、重载沙箱（pause）镜像

5.5、重启containerd服务并设置开机自启

5.6、下载pause镜像

5.7、配置containerd配置镜像加速

5.8、安装crictl命令行工具

5.9、安装nerdctl命令行工具

六、安装kubelet、kubeadm和kubectl

七、k8s镜像下载

八、使用kubeadm init初始化集群

8.1、生成默认kubeadm初始化config文件

8.2、修改kubeadm默认config文件

8.3、使用kubeadm init初始化集群

8.4、node01节点加入K8S集群

8.5、node02节点加入K8S集群

九、安装网络组件

十、安装Kubernetes-Dashboard

10.1、增加NodePort方式暴露服务

10.2、创建Dashboard-admin token
